MBG12 Series

Catalog

CONN BACKSHELL W/CLMP BLACK

Part	Material Flammability Rating	For Use With/Related Products	Includes	Includes Total Count	Screws Quantity	Color	Material	Cable Opening	Features	Cable Exit Angle	Type	Number of Positions	Shell Size - Insert	Shell Size - Insert	Note	Fastening Type	Insert Material	Mounting Feature	Housing Color	Connector Type	Mounting Type	Shielding	Contact Shape	Shell Material	Contact Size	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type
Amphenol Aerospace Operations MBG12S-1	UL94 V-0	MBG Connectors	Backshell Cable Clamp Screws	6 pcs	2 pcs	Black	Glass Filled Thermoplastic	0.74 in	Clamp Screws	180 °	Backshell Cable Clamp

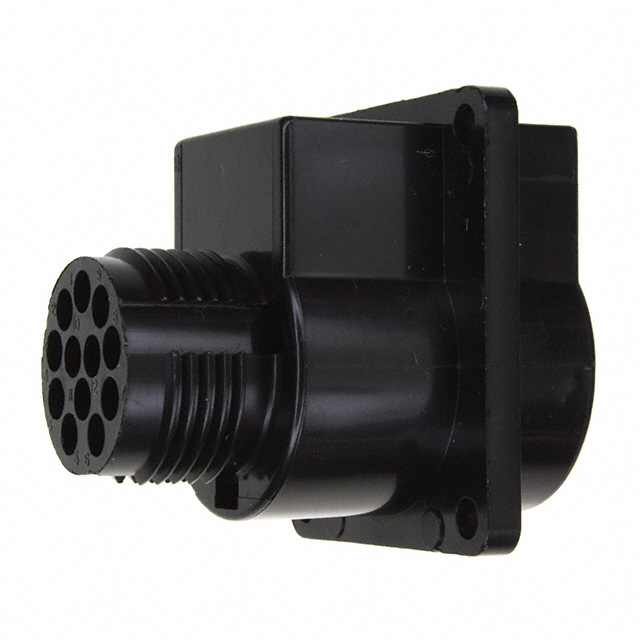

Amphenol Aerospace Operations MBG12R-1	UL94 V-0										For Male Pins	12	12	12	Contacts Not Included	Latch Lock	Halogen Free Thermoplastic	Flange	Black	Receptacle Housing	Panel Mount	Unshielded	Circular	Thermoplastic Polyester	16 S	125 °C	-55 °C	Crimp
Amphenol Aerospace Operations MBG12P-1	UL94 V-0										For Female Sockets	12	12	12	Contacts Not Included	Latch Lock	Halogen Free Thermoplastic		Black	Plug Housing	Free Hanging (In-Line)	Unshielded	Circular	Thermoplastic Polyester	16 S	125 °C	-55 °C	Crimp
