Q-0B02S0 Series

Catalog

CBL ASSY BNC-SMA JACK-JACK 4.9'

Part	1st Connector Mounting Type	2nd Connector	1st Connector	Cable Type	Overall Impedance	2nd Connector Mounting Type	Color	Length (ft)	Length	Frequency - Max	Style	2nd Contact Gender	Features	1st Contact Gender
McGill Microwave Systems Q-0B02S000H1.5M	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper	4.9 ft	59.1 in	4 GHz	BNC SMA	Female	Shielded	Female

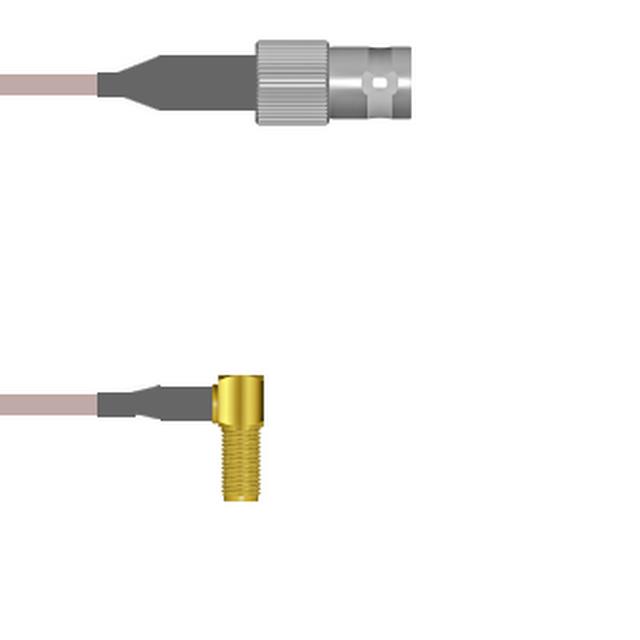

McGill Microwave Systems Q-0B02S000H006i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		0.5 ft	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H.75M	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		29.53 in	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H0.5M	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		19.69 in	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H084i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper	7 ft	84 in	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H009i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		228.6 mm	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H108i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		9 ft	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H036i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		36 in	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H003M	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper		118.1 in	4 GHz	BNC SMA	Female	Shielded	Female
McGill Microwave Systems Q-0B02S000H060i	Free Hanging (In-Line)	Right Angle SMA Jack	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	Copper	5 ft	1524 mm	4 GHz	BNC SMA	Female	Shielded	Female
