M24308/23 Series

Catalog

DSUB CONN,R/ANGLE, SOCKET, CADMI

Part	Contact Type	Flange Feature	Finish	Shell Material	Termination	Connector Style	Connector Type	Material Flammability Rating	Mounting Type	Number of Positions	Features	Backset Spacing	Current Rating	Number of Rows	Shell Size	Connector Layout	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Form	Contact Material	Color	Contact Finish Thickness

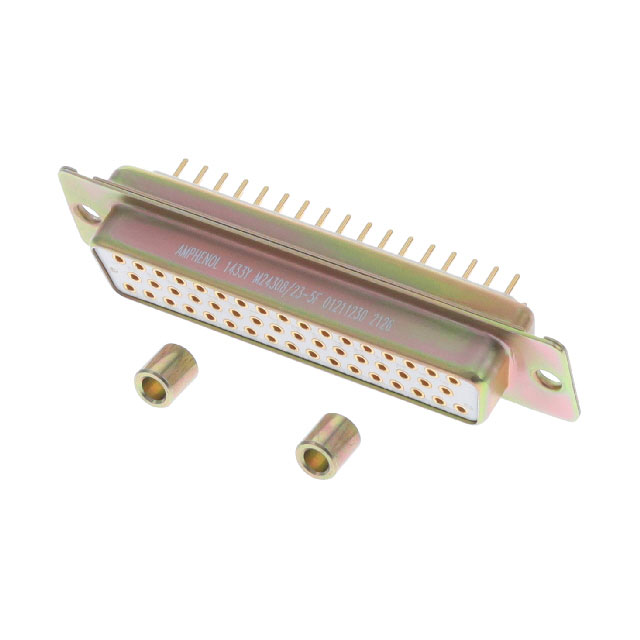

McGill Microwave Systems M24308/23-29F	Signal	Housing Shell (Unthreaded)	Yellow Cadmium Plated	Steel	Solder	D-Sub	Female Sockets Receptacle	UL94 V-0	Panel Mount Right Angle Through Hole	50	Mounting Brackets	0.283 in	7.5 A	3	5	D DD	Gold	125 °C	-55 °C	Glass Filled Polyester	26 AWG	19.5 AWG	Machined	Copper Alloy	Natural
McGill Microwave Systems M24308/23-5F	Signal	Housing Shell (Unthreaded)	Yellow Cadmium Plated	Steel	Solder	D-Sub	Female Sockets Receptacle	UL94 V-0	Panel Mount Through Hole	50			7.5 A	3	5	D DD	Gold
McGill Microwave Systems M24308/23-65F	Signal	Housing Shell (Unthreaded)	Yellow Chromate Plated Cadmium	Steel	Solder	D-Sub High Density	Female Sockets Receptacle	UL94 V-0	Panel Mount Through Hole	78			7.5 A	4	5	D DD High Density	Gold									50 µin
McGill Microwave Systems M24308/23-65F	Signal	Housing Shell (Unthreaded)	Yellow Cadmium Plated Yellow Chromate Plated Cadmium	Steel	Solder	D-Sub High Density	Female Sockets Receptacle	UL94 V-0	Panel Mount Through Hole	78			5 A 7.5 A	4	5	D DD High Density	Gold	125 °C	-55 °C	Glass Filled Polyester	28 AWG	22 AWG	Machined	Copper Alloy	Natural	50 µin
McGill Microwave Systems M24308/23-5F	Signal	Housing Shell (Unthreaded)	Yellow Cadmium Plated	Steel	Solder	D-Sub	Female Sockets Receptacle	UL94 V-0	Panel Mount Through Hole	50			7.5 A	3	5	D DD	Gold	125 °C	-55 °C	Glass Filled Polyester	26 AWG	19.5 AWG	Machined	Copper Alloy	Natural
