SMP-MSLD Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

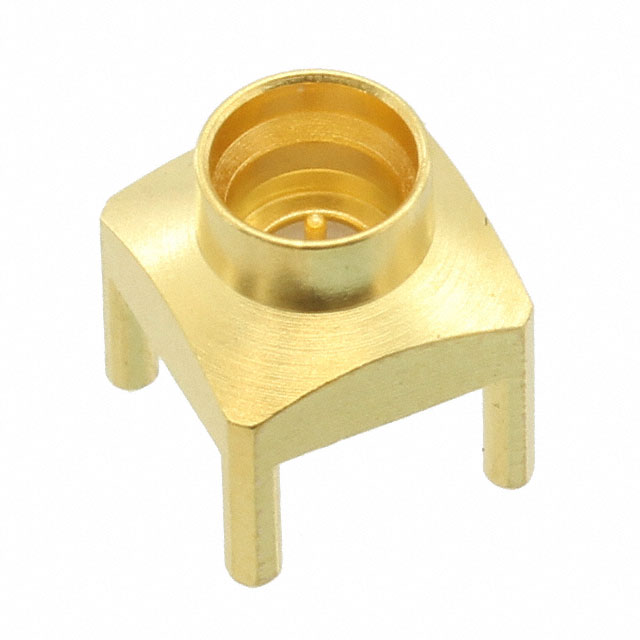

SMP STRAIGHT PCB JACK, MALE CONT
| Part | Fastening Type | Connector Type | Center Contact Material | Connector Style | Impedance | Frequency - Max | Shield Termination | Features | Contact Termination | Housing Color | Number of Ports | Mounting Type | Dielectric Material | Mating Cycles | Body Finish | Center Contact Plating | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Snap-On | Jack Male Pin | Brass | SMP | 50 Ohm | 20 Gbps | Solder | Limited Detent | Solder | Gold | 1 | Surface Mount | Liquid Crystal Polymer (LCP) | 500 cycles | Gold | Gold | Brass | -40 °C | 85 °C | ||
 McGill Microwave Systems | Snap-On | Male Pin Receptacle | Brass | SMP | 50 Ohm | 18 GHz | Solder | Limited Detent | Solder | Gold | 1 | Surface Mount | Liquid Crystal Polymer (LCP) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | ||
 McGill Microwave Systems | Snap-On | Jack Male Pin | Beryllium Copper | SMP | 50 Ohm | 26.5 GHz | Solder | Limited Detent | Solder | Gold | 1 | Board Edge Cutout Surface Mount | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | ||
 McGill Microwave Systems | Snap-On | Jack Male Pin | Brass | SMP | 50 Ohm | 18 GHz | Solder | Limited Detent | Solder | Gold | 1 | Surface Mount | Liquid Crystal Polymer (LCP) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | ||

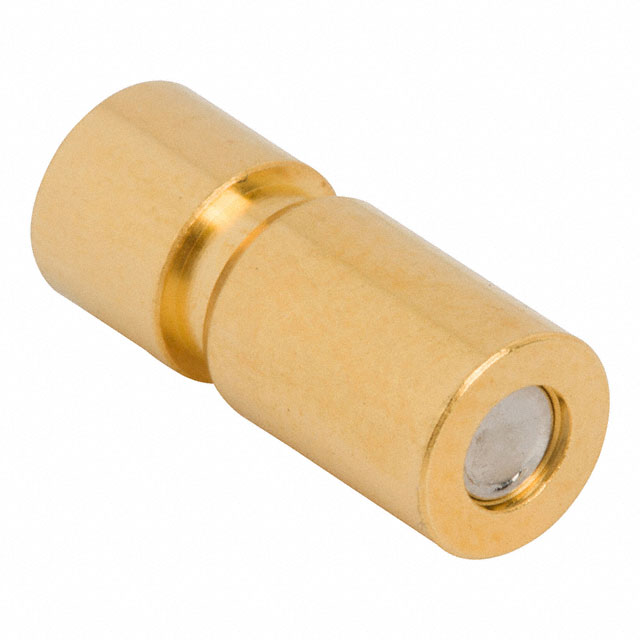

 McGill Microwave Systems | Jack Male Pin | SMP | 50 Ohm | 26.5 GHz | Limited Detent | Cap Free Hanging | Polytetrafluoroethylene (PTFE) | Gold | Brass | Beryllium Copper | Gold | ||||||||||
 McGill Microwave Systems | Snap-On | Male Pin Receptacle | Beryllium Copper | SMP | 50 Ohm | 26.5 GHz | Solder | Limited Detent | Solder | Gold | 1 | Surface Mount Through Hole | Polyetheretherketone (PEEK) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | ||
 McGill Microwave Systems | Snap-On | Jack Male Pin | Brass | SMP | 50 Ohm | 20 Gbps | Solder | Limited Detent | Solder | Gold | 1 | Through Hole | Liquid Crystal Polymer (LCP) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | ||
 McGill Microwave Systems | Snap-On | Male Pin Receptacle | Brass | SMP | 50 Ohm | 6000 MHz | Solder | Limited Detent | Solder | Gold | 1 | Through Hole | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C | |||
 McGill Microwave Systems | Snap-On | Jack Male Pin | Beryllium Copper | SMP | 50 Ohm | 26.5 GHz | Solder | Limited Detent | Solder | Gold | 1 | Through Hole | Polyetheretherketone (PEEK) | 500 cycles | Gold | Gold | Phosphor Bronze | -65 °C | 165 °C | ||
 McGill Microwave Systems | Snap-On | Jack Male Pin | Gold | SMP | 50 Ohm | 18 GHz | Solder | Pick and Place Cap Solder Retention | Solder | Gold | 1 | Surface Mount | Liquid Crystal Polymer (LCP) | 500 cycles | Gold | Gold | Brass | -65 °C | 165 °C |
