Q-030420 Series

Catalog

CBL ASSY BNC-SMP JACK-PLUG 5'

Part	1st Connector	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	2nd Connector	Features	2nd Connector Mounting Type	Length	Length (ft)	Color	Overall Impedance	Cable Type	Frequency - Max	Style

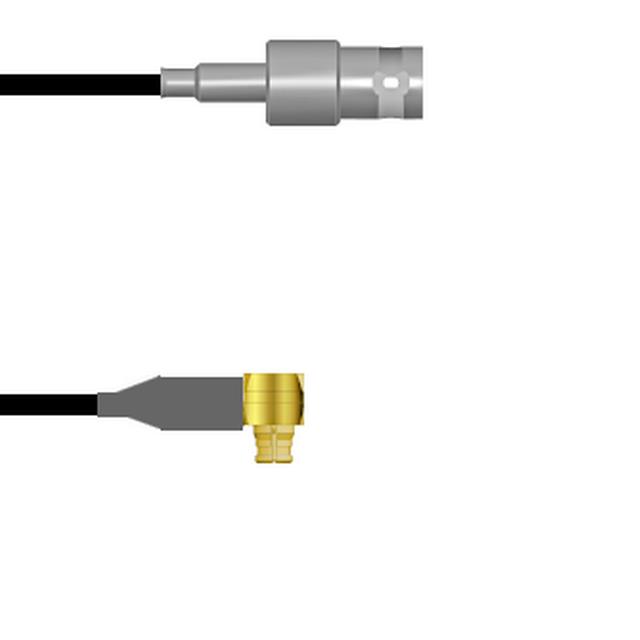

McGill Microwave Systems Q-030420003060i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	1524 mm	5 ft	Black	50 Ohms	174 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420005003i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	3 "		Copper	50 Ohms	316 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420003002M	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)		6.6 ft	Black	50 Ohms	174 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420003.75M	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	29.53 in		Black	50 Ohms	174 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420003006i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	0.5 ft		Black	50 Ohms	174 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420003024i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	24 in		Black	50 Ohms	174 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420005072i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	72 in		Copper	50 Ohms	316 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420005006i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	0.5 ft		Copper	50 Ohms	316 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420005002M	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)		6.6 ft	Copper	50 Ohms	316 RG	4 GHz	BNC SMP
McGill Microwave Systems Q-030420005009i	BNC Jack	Free Hanging (In-Line)	Female	Male	Right Angle SMP Plug	Shielded	Free Hanging (In-Line)	228.6 mm		Copper	50 Ohms	316 RG	4 GHz	BNC SMP
