AAD-03PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
MINI STAMPING PIN
| Part | Shielding | Number of Positions | Fastening Type | Shell Material | Insert Material | Shell Size - Insert | Connector Type | Material Flammability Rating | Contact Finish - Mating | Primary Material | Ingress Protection Description | Ingress Protection IP Rating | Orientation | Termination | Current Rating | Voltage Rating | Voltage Rating (Type) | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Color | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

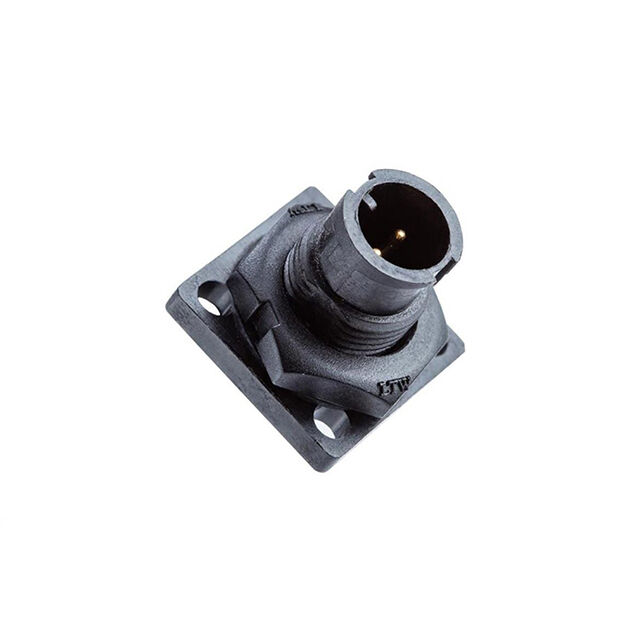

 McGill Microwave Systems | Unshielded | 3 | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Glass Filled Nylon PA Polyamide | A | Male Pins Receptacle | UL94 V-0 | Gold | Plastic | Dust Tight Waterproof | IP67 | Keyed | Solder Cup | 5 A | 250 V | DC | Copper Alloy | -40 °C | 105 °C | Black | Panel Mount | Bulkhead Flange Front Side Nut |
 McGill Microwave Systems | Unshielded | 3 | Threaded | Glass Filled Nylon Polyamide (PA) | Glass Filled Nylon PA Polyamide | A | Male Pins Receptacle | UL94 V-0 | Gold | Plastic | Dust Tight Waterproof | IP67 | Keyed | Solder Cup | 5 A | 250 V | DC | Copper Alloy | -40 °C | 105 °C | Black | Panel Mount | Bulkhead Flange Front Side Nut |
 McGill Microwave Systems | Unshielded | 3 | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Nylon PA Polyamide | A | Male Pins Receptacle | Gold | Plastic | Dust Tight Waterproof | IP67 | Keyed | Solder Cup | 5 A | 300 VAC/DC | Copper Alloy | -40 °C | 105 °C | Black | Panel Mount | Bulkhead Front Side Nut |
