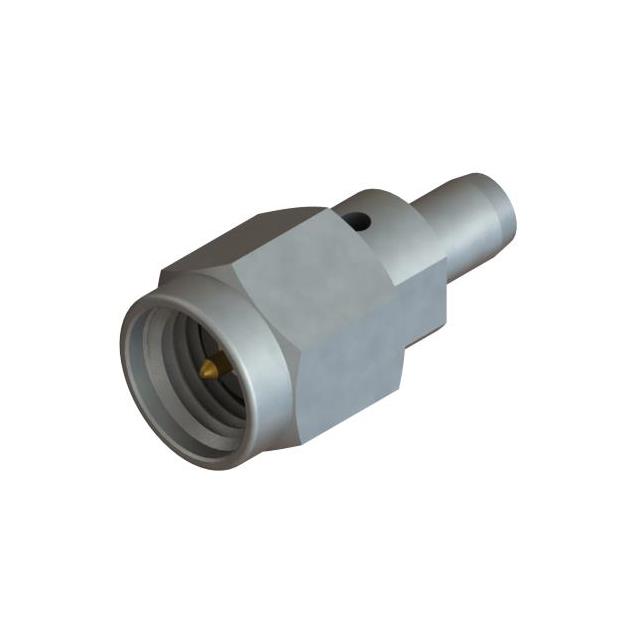

SF1114 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF / COAXIAL ADAPTER, OSSP, PLUG, SMA, PLUG, STRAIGHT ADAPTER, 50 OHM
| Part | Center Contact Material | Body Material | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Mating Cycles | Adapter Series | Impedance | Adapter Type | Mounting Type | Frequency - Max | Fastening Type | Center Gender | Convert From (Adapter End) | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Center Contact Plating | Conversion Type | Style | Mounting Feature | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Brass | Stainless Steel | 125 °C | -65 °C | Polytetrafluoroethylene (PTFE) | 5000 cycles | SMA to BMMA | 50 Ohm | Plug to Plug | Free Hanging (In-Line) | 18 GHz | Snap-On Threaded | Male | BMMA Plug Male Pin | SMA Plug | Male Pin | Gold | Between Series | Straight | |||
 McGill Microwave Systems | Beryllium Copper | Stainless Steel | 125 °C | -55 °C | Polytetrafluoroethylene (PTFE) | 5000 cycles | SMA to BMMA | 50 Ohm | Plug to Jack | Free Hanging (In-Line) | 18 GHz | Snap-On Threaded | Female Male | BMMA Jack Female Socket | SMA Plug | Male Pin | Gold | Between Series | Straight | |||
 McGill Microwave Systems | Beryllium Copper | Stainless Steel | 125 °C | -65 °C | Polytetrafluoroethylene (PTFE) | 5000 cycles | SMA to BMMA | 50 Ohm | Plug to Jack | Panel Mount | 18 GHz | Snap-On Threaded | Female Male | BMMA Plug Male Pin | SMA Jack | Female Socket | Gold | Between Series | Straight | Bulkhead | 3 pcs | Connector Lockwasher Nut |
