SF3321 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

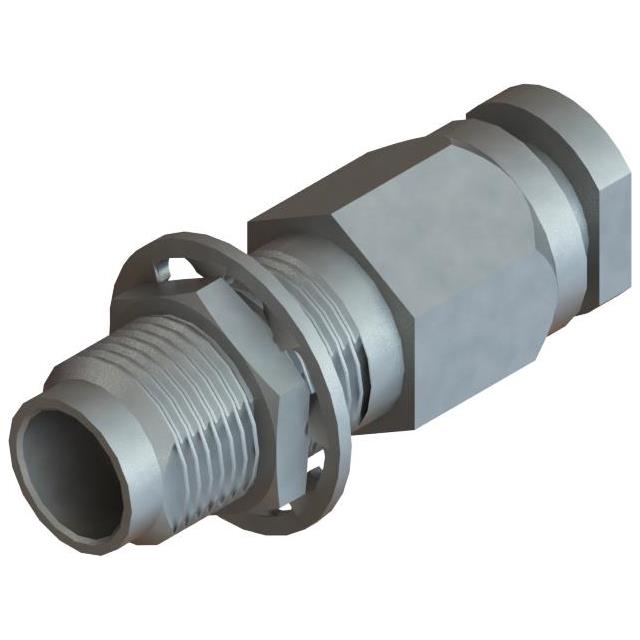

1.85MM FEMALE BULKHEAD CONNECTOR FOR .047 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS
| Part | Center Contact Plating | Operating Temperature (Max) | Operating Temperature (Min) | Includes Total Count | Includes | Body Material | Mating Cycles | Dielectric Material | Cable Group Size | Cable Group | Connector Type | Shield Termination | Frequency - Max | Fastening Type | Center Contact Material | Housing Color | Mounting Type | Connector Plug Diameter | Mounting Feature | Contact Termination | Impedance | Number of Ports | Insertion Loss | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 125 °C | -55 °C | 3 pcs | Connector Lockwasher Nut | Stainless Steel | 500 cycles | Polychlorotrifluoroethylene (PCTFE) | 0.047 " | Flexible | Female Socket Jack | Solder | 65 GHz | Threaded | Beryllium Copper | Silver | Panel Mount | 1.85 mm | Bulkhead Front Side Nut | Solder | 50 Ohm | 1 | ||

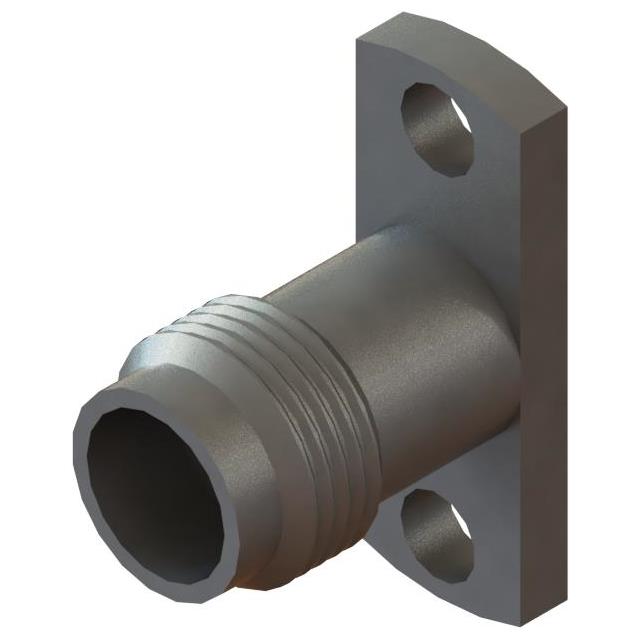

 McGill Microwave Systems | Gold | 165 °C | -65 °C | Stainless Steel | 500 cycles | Polychlorotrifluoroethylene (PCTFE) | Female Socket Jack | Screw | 67 GHz | Threaded | Beryllium Copper | Surface Mount | 1.85 mm | Flange | Compression | 50 Ohm | 1 | 0.41 dB | Flange | |||||

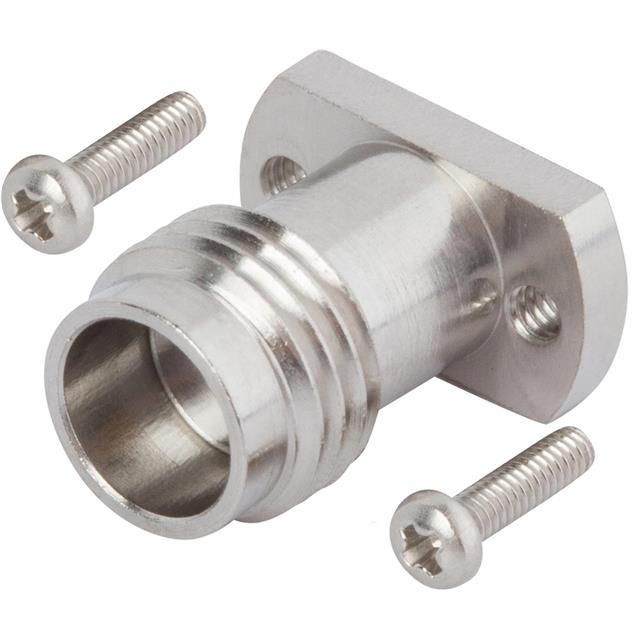

 McGill Microwave Systems | Gold | 125 °C | -55 °C | Stainless Steel | 500 cycles | Polychlorotrifluoroethylene (PCTFE) | Female Socket Jack | Screw | 65 GHz | Threaded | Beryllium Copper | Silver | Panel Mount | 1.85 mm | Flange | Compression | 50 Ohm | 1 | ||||||

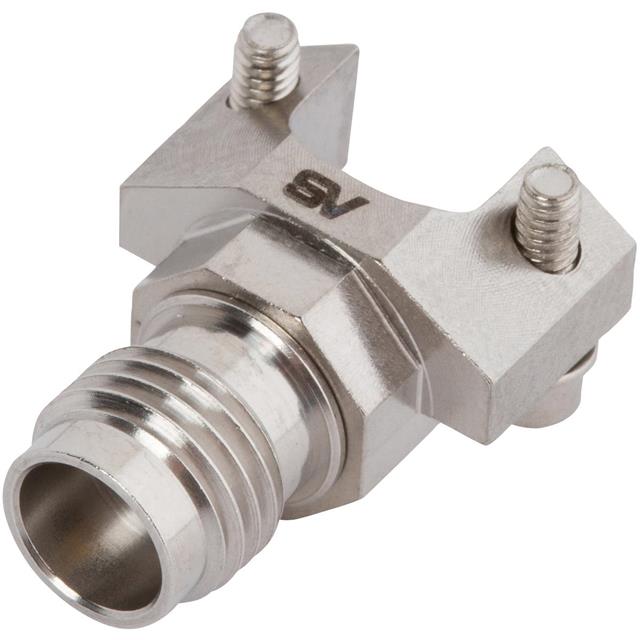

 McGill Microwave Systems | Gold | 165 °C | -65 °C | 3 pcs | Connector Screws | Stainless Steel | 500 cycles | Female Socket Jack | Screw | 67 GHz | Threaded | Beryllium Copper | Silver | Board Edge End Launch | 1.85 mm | Compression | 50 Ohm | 1 | 0.327 dB | Mounting Hardware | ||||
 McGill Microwave Systems | Gold | 165 °C | -65 °C | Stainless Steel | 500 cycles | Polychlorotrifluoroethylene (PCTFE) | Female Socket Jack | Screw | 67 GHz | Threaded | Beryllium Copper | Surface Mount | 1.85 mm | Flange | Compression | 50 Ohm | 1 | 0.41 dB | Flange | |||||
 McGill Microwave Systems | Gold | 165 °C | -65 °C | 3 pcs | Connector Screws | 500 cycles | Female Socket Jack | Screw | Threaded | Board Edge End Launch | 1.85 mm | Compression | 50 Ohm | Mounting Hardware |
