AD9559 Series

Catalog

CLOCK GENERATOR 0.002MHZ TO 1.25GHZ-IN 1250MHZ-OUT 72-PIN LFCSP EP TRAY

Part	Frequency - Max	Output	Input	Mounting Type	Package / Case	Main Purpose	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Differential Input	Differential Output	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	PLL	Input Ratio	Output Ratio	Number of Circuits	Supplied Contents	Function	Utilized IC / Part	Contents	Type
Analog Devices Inc./Maxim Integrated AD9559BCPZ	1.25 GHz	CMOS HSTL LVDS	LVDS LVPECL	Surface Mount	72-VFQFN Exposed Pad CSP	Ethernet SONET/SDH Stratum	3.465 V	1.71 V	Yes	Yes	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	4	4	1
Analog Devices Inc./Maxim Integrated AD9559BCPZ-REEL7	1.25 GHz	CMOS HSTL LVDS	LVDS LVPECL	Surface Mount	72-VFQFN Exposed Pad CSP	Ethernet SONET/SDH Stratum	3.465 V	1.71 V	Yes	Yes	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	4	4	1

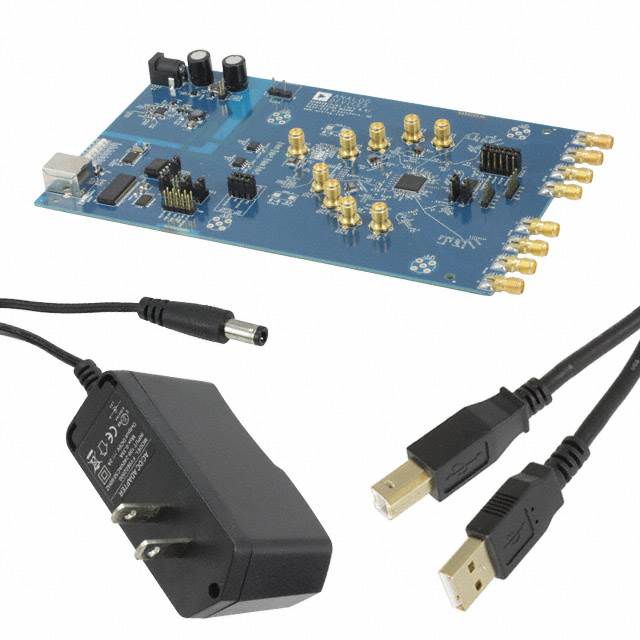

Analog Devices Inc./Maxim Integrated AD9559/PCBZ																				Board(s)	Clock Multiplier	AD9559	Board	Timing
