3224 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

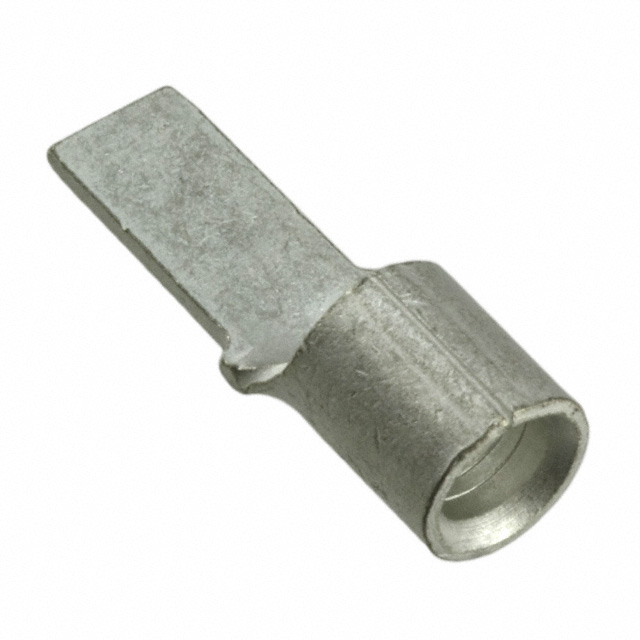

CONN TERM RECT TONG 8 AWG
| Part | Contact Finish | Contact Material | Diameter - Barrel ID | Diameter - Barrel OD | Pin Diameter Shape | Pin Diameter Height | Pin Diameter Width | Wire Gauge | Termination | Features | Insulation | Length - Overall | Thickness | Width - Outer Edges | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Mounting Type | Terminal Type | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Copper | 0.177 in | 0.296 in | Rectangular | 0.048 in | 0.221 in | 8 AWG | Crimp | Brazed Seam Serrated Termination | Non-Insulated | 0.937 in | |||||||
 TE Connectivity AMP Connectors | Tin | Copper | Crimp | Brazed Seam Serrated Termination | Non-Insulated | 0.723 in | 0.039 in | 0.343 in | 12 AWG | 10 AWG | Free Hanging (In-Line) | Circular | 10 Stud |
