D38999/24TE Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CORSAIR_
| Part | Mounting Type | Connector Type | Number of Positions | Applications | Shielding | Mounting Feature | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Shell Size (MIL) | Termination | Contact Finish - Mating | Fastening Type | Orientation | Shell Size - Insert Length | Shell Size - Insert Width | Ingress Protection | Operating Temperature (Min) | Operating Temperature (Max) | Primary Material | Qualification | Contact Finish Thickness - Mating | Shell Finish | Grade | Contact Material | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Panel Mount | Female Sockets Receptacle | 55 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | 35 | 17 | E | Crimp | Gold | Threaded | N (Normal) | ||||||||||||
 Amphenol Aerospace Operations | |||||||||||||||||||||||||
Amphenol Aerospace Operations | Panel Mount | Male Pins Receptacle | 8 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | E | Crimp | Gold | Threaded | N (Normal) | 17 mm | 8 mm | ||||||||||||
Amphenol Aerospace Operations | Panel Mount | Male Pins Receptacle | 6 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | E | Crimp | Gold | Threaded | N (Normal) | 17 mm | 6 mm | ||||||||||||

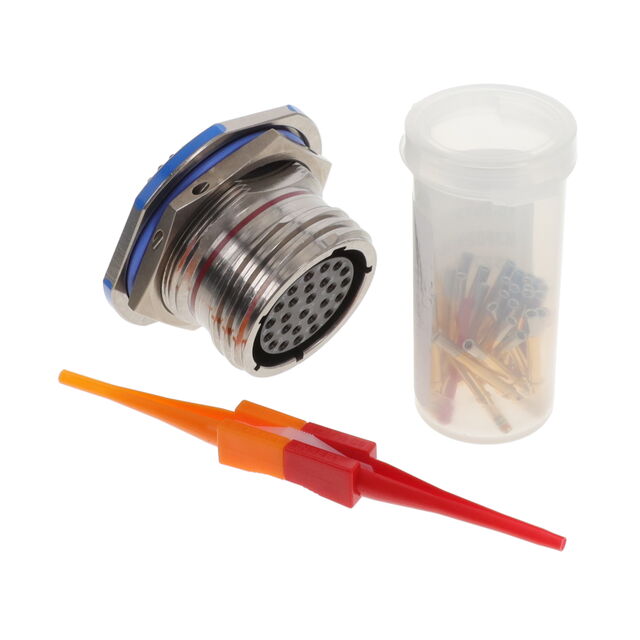

 Amphenol Aerospace Operations | Panel Mount | Female Sockets Receptacle | 26 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | 26 | 17 | E | Crimp | Gold | Threaded | N (Normal) | Environment Resistant | -65 °C | 175 °C | Metal | MIL-DTL-38999 Series III | 50 µin | Durmalon™ | Military | Copper Alloy | Aluminum | ||
Amphenol Aerospace Operations | |||||||||||||||||||||||||
Amphenol Aerospace Operations | Panel Mount | Male Pins Receptacle | 26 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | 26 | 17 | E | Crimp | Gold | Threaded | N (Normal) | ||||||||||||
Amphenol Aerospace Operations | Panel Mount | Male Pins Receptacle | 23 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | 99 | 17 | E | Crimp | Gold | Threaded | N (Normal) | ||||||||||||
Amphenol Aerospace Operations | Panel Mount | Female Sockets Receptacle | 8 | Aviation Marine Military | Shielded | Bulkhead Front Side Nut | E | Crimp | Gold | Threaded | N (Normal) | 17 mm | 8 mm | ||||||||||||
Amphenol Aerospace Operations |
