APH-NJ Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
COAX ADAPT N TO F
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Material | Body Finish | Dielectric Material | Body Material | Ingress Protection | Center Gender | Fastening Type | Convert To (Adapter End) | Conversion Type | Impedance | Convert From (Adapter End) | Style | Center Contact Plating | Mounting Type | Adapter Series | Adapter Type | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Frequency - Max | Ingress Protection Description | Ingress Protection IP Rating | Mounting Feature | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

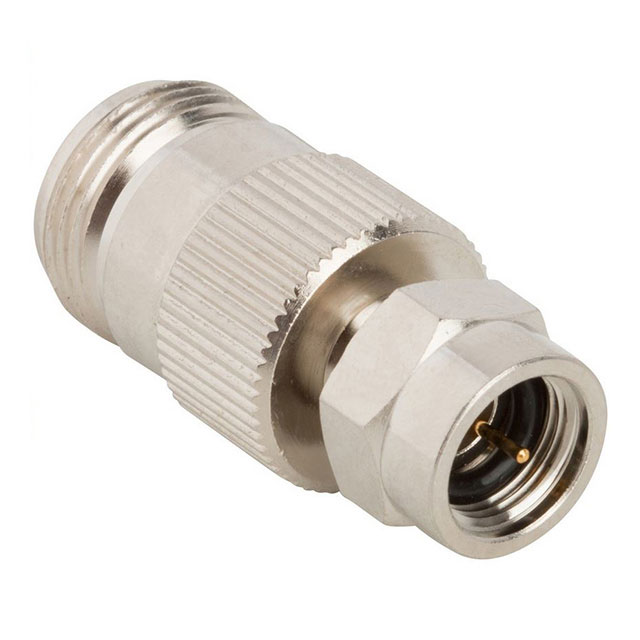

 McGill Microwave Systems | -65 °C | 165 °C | Phosphor Bronze | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Waterproof | Female Male | Threaded | F Plug Male Pin | Between Series | 50 Ohm | Female Socket N Jack | Straight | Gold | Free Hanging (In-Line) | N to F | Plug to Jack | |||||||

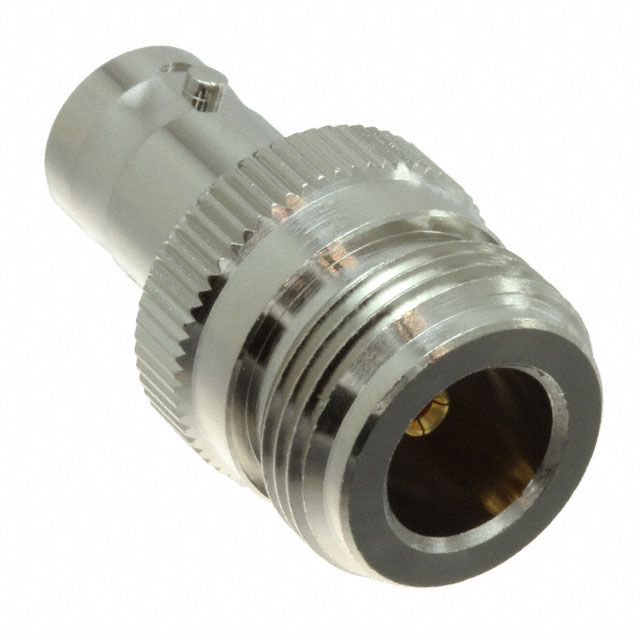

 McGill Microwave Systems | -65 °C | 165 °C | Phosphor Bronze | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female | Bayonet Lock Threaded | Between Series | 50 Ohm | BNC Jack Female Socket | Straight | Gold | Free Hanging (In-Line) | BNC to N | Jack to Jack | N Jack | Female Socket | 4 GHz | ||||||
 McGill Microwave Systems | -65 °C | 165 °C | Phosphor Bronze | Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female Male | Bayonet Lock Threaded | Between Series | 50 Ohm | BNC Plug Male Pin | Straight | Gold | Free Hanging (In-Line) | BNC to N | Plug to Jack | N Jack | Female Socket | 4 GHz | ||||||
 McGill Microwave Systems | -40 °C | 125 °C | Beryllium Copper | Gold Nickel | Polytetrafluoroethylene (PTFE) | Brass | Female | Snap-On Threaded | Between Series | 50 Ohm | Female Socket N Jack | Straight | Gold | Panel Mount | N to MCX | Jack to Jack | MCX Jack | Female Socket | 6000 MHz | Dust Tight Waterproof | IP67 | Bulkhead | 100 cycles | ||
 McGill Microwave Systems | -65 °C | 165 °C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Stainless Steel | Female | Bayonet Lock Threaded | Between Series | 75 Ohm | BNC HD Jack Female Socket | Straight | Gold | Free Hanging (In-Line) | BNC HD to N | Jack to Jack | N Jack | Female Socket | 4 GHz | 500 cycles |
