A-1PA-178 Series

Catalog

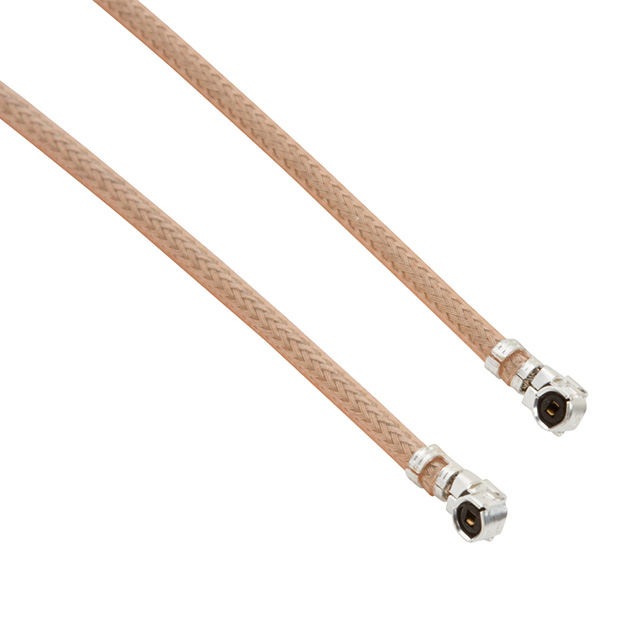

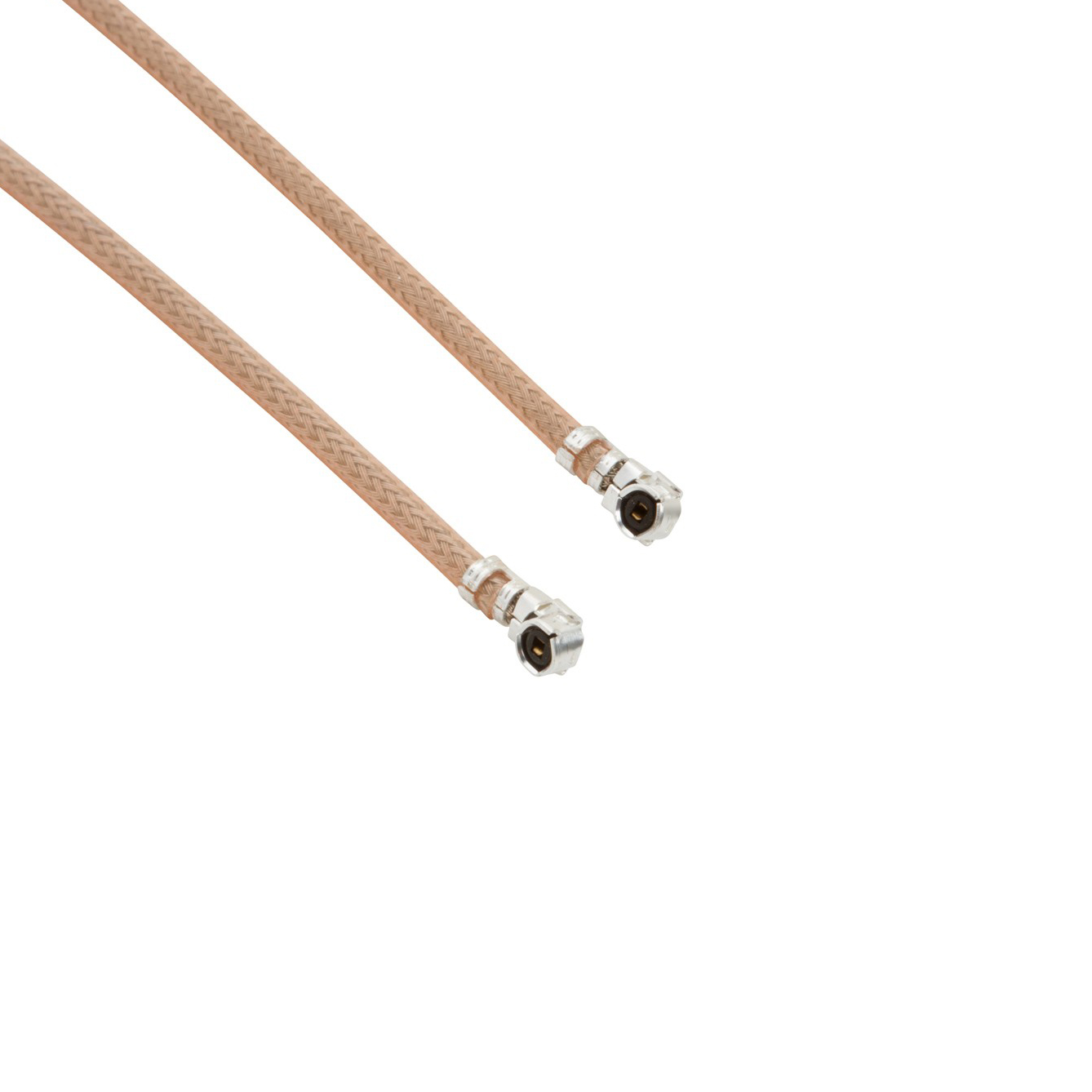

CBL ASSY U.FL UMCC PLUG-PLG 3.3'

Part	1st Contact Gender	Cable Type	2nd Connector	2nd Contact Gender	Operating Temperature (Max)	Operating Temperature (Min)	Overall Impedance	Features	Style	Length	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Impedance	1st Connector	Frequency - Max	Color
McGill Microwave Systems A-1PA-178-01KN2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	39.4 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
McGill Microwave Systems A-1PA-178-300N2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	11.811 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
McGill Microwave Systems A-1PA-178-400N2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	15.75 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
McGill Microwave Systems A-1PA-178-200N2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	7.874 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
McGill Microwave Systems A-1PA-178-500N2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	19.69 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
McGill Microwave Systems A-1PA-178-150N2	Female	178 RG	AMC Plug Right Angle U.FL (UMCC)	Female	90 °C	-40 °C	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	5.906 in	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural
