Q-7101T0 Series

Catalog

CBL ASSY RPSMA-NTYPE JK-JK 8.2'

Part	Color	Connector Impedance	2nd Connector	Style	Cable Impedance	Overall Impedance	1st Connector Mounting Type	Length (ft)	Length	Features	1st Connector	Frequency - Max	2nd Connector Mounting Feature	Cable Type	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender

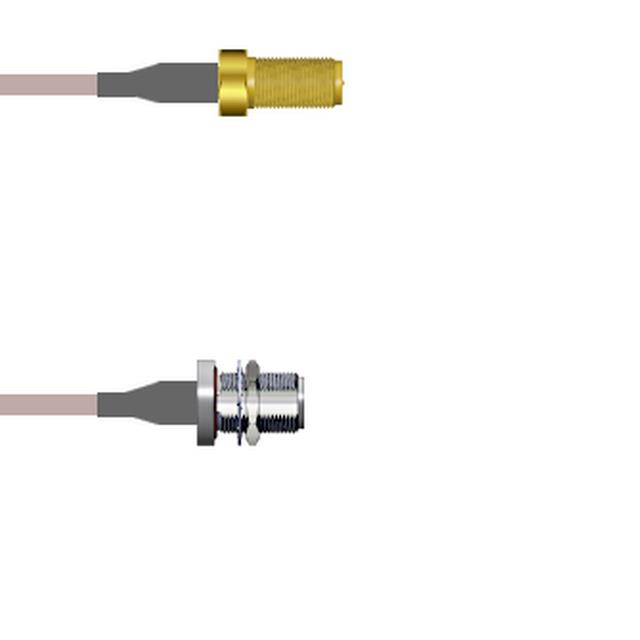

McGill Microwave Systems Q-7101T00052.5M	Copper	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	8.2 ft	98.4 in	Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	316 RG	Male	Panel Mount	Female

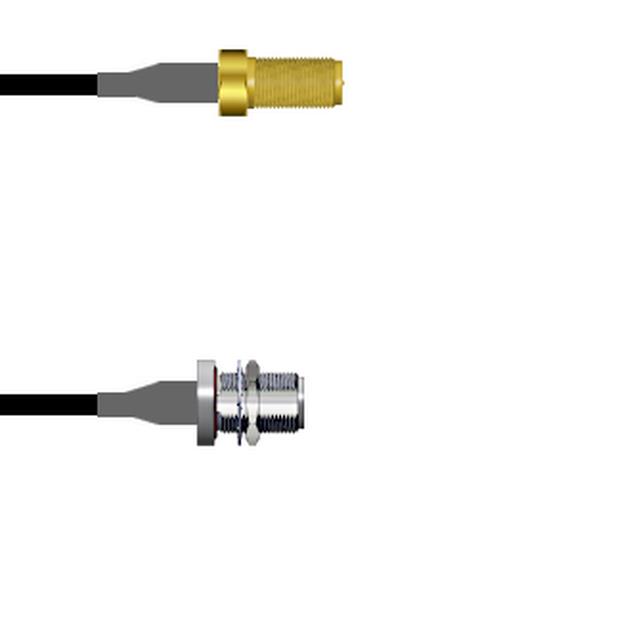

McGill Microwave Systems Q-7101T00032.5M	Black	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	8.2 ft	98.4 in	Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	174 RG	Male	Panel Mount	Female
McGill Microwave Systems Q-7101T0005002M	Copper	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	6.6 ft		Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	316 RG	Male	Panel Mount	Female
McGill Microwave Systems Q-7101T0005003M	Copper	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)		118.1 in	Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	316 RG	Male	Panel Mount	Female
McGill Microwave Systems Q-7101T00051.5M	Copper	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	4.9 ft	59.1 in	Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	316 RG	Male	Panel Mount	Female
McGill Microwave Systems Q-7101T00031.5M	Black	50 Ohms	N-Type Jack	N-Type RP-SMA	50 Ohms	50 Ohms	Free Hanging (In-Line)	4.9 ft	59.1 in	Shielded	RP-SMA Jack	1 GHz	Bulkhead - Front Side Nut	174 RG	Male	Panel Mount	Female
