V703 Series

Catalog

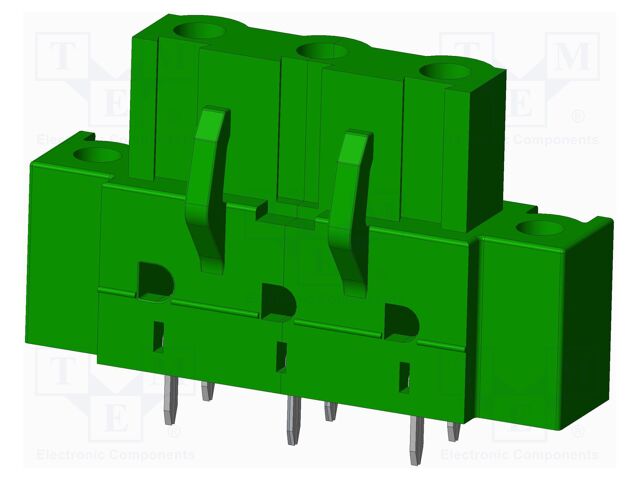

TERM BLOCK HDR 3POS 90DEG 7.5MM

Part	Color	Voltage - UL	Current - UL	Mounting Type	Pitch	Contact Mating Finish	Header Orientation Angle	Header Orientation	Number of Levels	Positions Per Level	Number of Positions	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Features	Type	Housing Material	Contact Tail Length	Contact Material	Material Flammability Rating	Insulation Height
McGill Microwave Systems V703A2510000G	Green	300 V	10 A	Through Hole	0.295 in	Tin	90 °	Right Angle	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0
McGill Microwave Systems V70371510000G	Green	300 V	10 A	Through Hole	0.197 in	Tin	90 °	Right Angle	1	3	3	Solder	-40 °C	115 °C	Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0
McGill Microwave Systems V70302500000G	Green	300 V	20 A	Through Hole	0.3 in	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Copper	UL94 V-0	0.748 in
McGill Microwave Systems V70372510000G	Green	300 V	10 A	Through Hole	0.197 in	Tin	90 °	Right Angle	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.425 in
McGill Microwave Systems V70371500000G	Green	300 V	10 A	Through Hole	0.197 in	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.748 in
McGill Microwave Systems V70372500000G	Green	300 V	10 A	Through Hole	0.197 in	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.748 in
McGill Microwave Systems V70351500000G	Green	300 V	20 A	Through Hole	5.08 mm	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Copper	UL94 V-0	0.748 in
McGill Microwave Systems V703A2500000G	Green	300 V	10 A	Through Hole	0.295 in	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.748 in
McGill Microwave Systems V70312500000G	Green	300 V	4 A	Through Hole	0.138 in	Tin		Vertical	1	3	3	Solder	-40 °C	115 °C	Mating Flange	Female Sockets Header	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0	0.571 in
McGill Microwave Systems V70302510000G	Green	300 V	20 A	Through Hole	0.3 in	Tin	90 °	Right Angle	1	3	3	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Female Sockets Header	Thermoplastic	0.138 in	Copper	UL94 V-0
