031-61 Series

Catalog

CONN TNC JACK STR 50 OHM CRIMP

Part	Impedance	Cable Group	Frequency - Max	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Fastening Type	Number of Ports	Mounting Type	Mounting Feature	Center Contact Material	Connector Type	Shield Termination	Contact Termination	Connector Style	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Dielectric Material	Mating Cycles	Voltage Rating	Includes Total Count	Includes	Center Contact Plating	Body Finish	Insertion Loss	Cable Group Diameter (Semi Rigid)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Adapter Series	Style	Center Gender	Convert From (Adapter End)	Conversion Type	Cable Group Diameter (Default)	Ingress Protection
McGill Microwave Systems 031-6111	50 Ohm	188 188A 316 LMR-100 M17/119-RG174 RG-174	3 GHz	Dust Tight Waterproof	IP67	Silver	Threaded	1	Panel Mount	Bulkhead Front Side Nut	Phosphor Bronze	Female Socket Jack	Crimp	Crimp Solder	TNC	-40 °C	85 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	5 pcs	Connector Contact Ferrule Lockwasher Nut	Gold	Nickel	0.18 dB
McGill Microwave Systems 031-6180	50 Ohm	RG-402	11 GHz			Silver	Threaded	1	Panel Mount	Flange	Phosphor Bronze	Female Socket Jack	Solder	Solder	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles		4 pcs	Connector Contact Insulator Nut	Gold	Nickel		0.141 in
McGill Microwave Systems 031-6101	50 Ohm		6000 MHz				Snap-On Threaded		Panel Mount	Flange	Brass					-40 °C	90 °C	Brass	Polytetrafluoroethylene (PTFE)	30 cycles				Gold	Nickel			RP-TNC Jack	Male Pin	Jack to Jack	AMC RP-TNC to U.FL (UMCC)	Straight	Male	Male Pin U.FL (UMCC) Jack	Between Series
McGill Microwave Systems 031-6157	50 Ohm	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz			Silver	Threaded	1	Free Hanging (In-Line) Right Angle		Brass	Male Pin Plug	Crimp	Solder	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles		3 pcs	Connector End Cap Ferrule	Gold	Nickel
McGill Microwave Systems 031-6179	50 Ohm	RG-405	11 GHz			Silver	Threaded	1	Panel Mount	Bulkhead Front Side Nut	Phosphor Bronze	Female Socket Jack	Solder	Solder	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles		6 pcs	Connector Contact Gasket Insulator Lockwasher Nut	Gold	Nickel		0.086 in									0.085 in
McGill Microwave Systems 031-6166	50 Ohm	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	11 GHz			Silver	Threaded	1	Panel Mount	Bulkhead Front Side Nut	Phosphor Bronze	Female Socket Jack	Crimp	Crimp	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut	Gold	Nickel	0.18 dB											Weatherproof
McGill Microwave Systems 031-6140	50 Ohm	213 214 Belden 9258 LMR-240 RG-8	11 GHz			Silver	Threaded	1	Free Hanging (In-Line)		Brass	Male Pin Plug	Crimp	Crimp	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	3 pcs	Connector Contact Ferrule	Gold	Nickel	0.18 dB
McGill Microwave Systems 031-6141	50 Ohm	LMR-600	11 GHz			Silver	Threaded	1	Free Hanging (In-Line)		Brass	Male Pin Plug	Crimp	Crimp	TNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	500 V	3 pcs	Connector Contact Ferrule	Gold	Nickel	0.18 dB

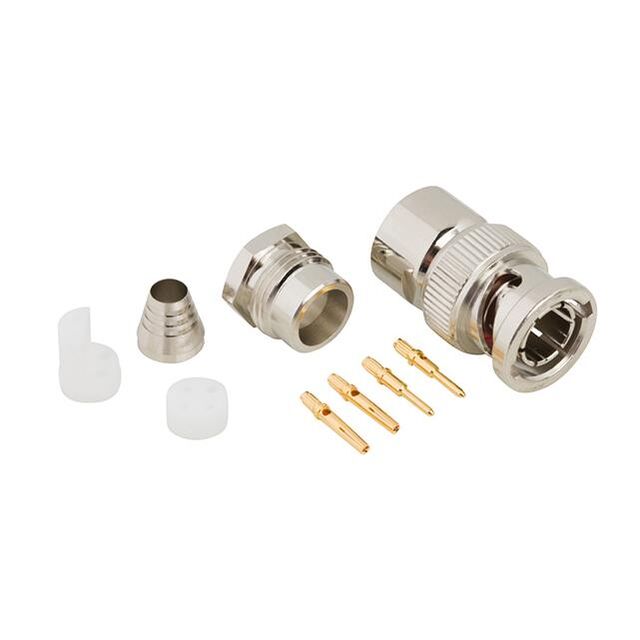

McGill Microwave Systems 031-6116	50 Ohm		1 GHz			Silver	Bayonet Lock	1	Free Hanging (In-Line)		Beryllium Copper Brass	Female Socket Male Pin Plug	Clamp	Solder	BNC	-65 °C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	350 V	7 pcs	Braid Clamp Clamp Connector Contacts Gasket Top Hat	Gold	Nickel	0.2 dB
