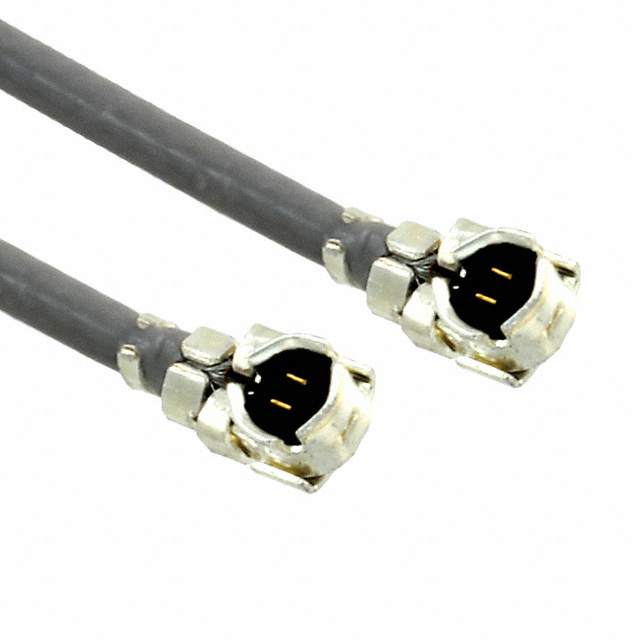

A-1PA-137 Series

Catalog

CBL ASSY U.FL UMCC PLG-PL 3.937"

Part	Features	Style	1st Contact Gender	Frequency - Max	2nd Contact Gender	Length	2nd Connector	Color	Overall Impedance	1st Connector	Operating Temperature (Max)	Operating Temperature (Min)	2nd Connector Mounting Type	Cable Type Size	Cable Type	Cable Outer Diameter	1st Connector Mounting Type
McGill Microwave Systems A-1PA-137-100B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	3.937 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-040B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	1.575 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-150G2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	5.906 in	AMC Plug Right Angle U.FL (UMCC)	Gray	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-850B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	33.46 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-050B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	1.969 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-200B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	7.874 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)

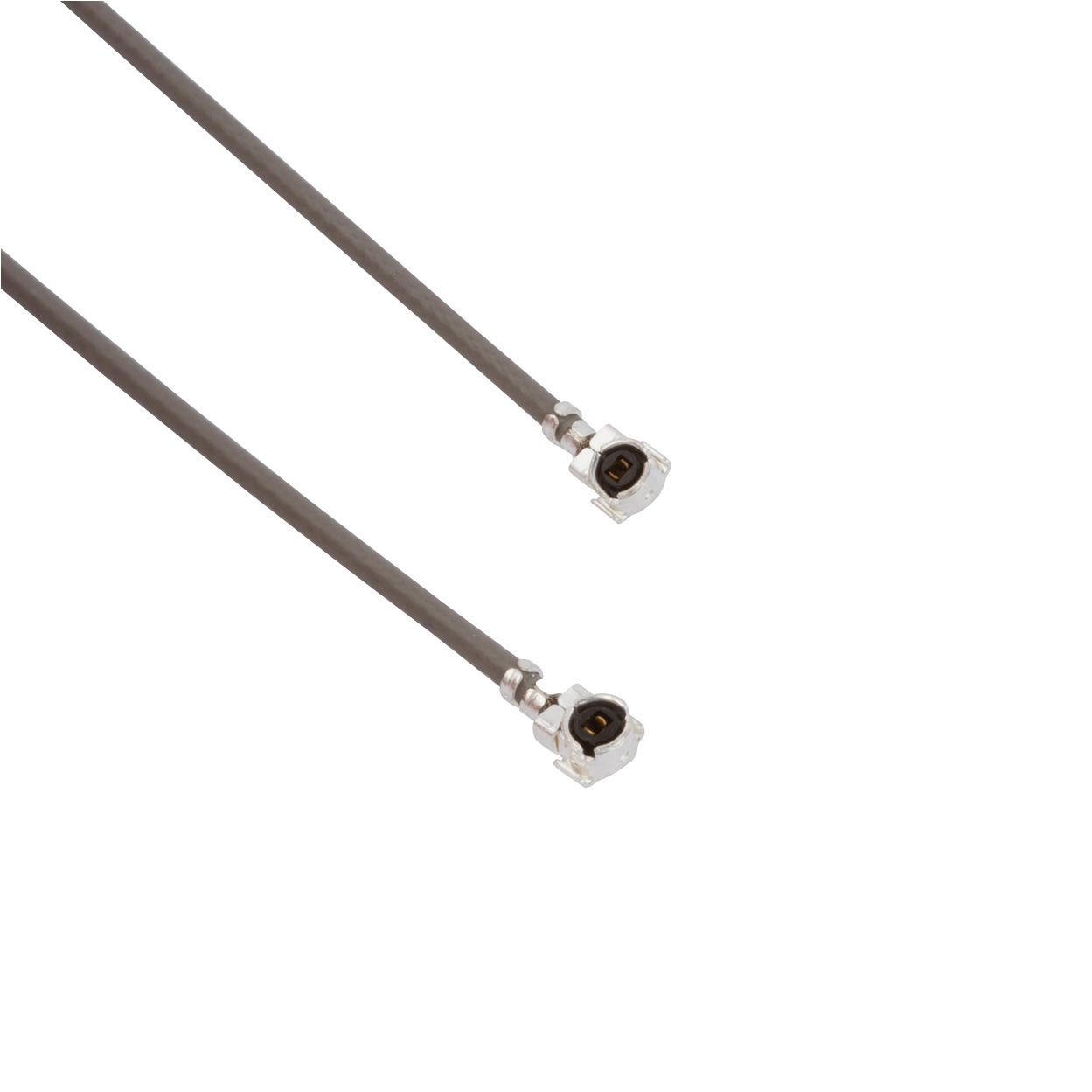

McGill Microwave Systems A-1PA-137-200G2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	7.874 in	AMC Plug Right Angle U.FL (UMCC)	Gray	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-075B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	2.953 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-500B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	19.69 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
McGill Microwave Systems A-1PA-137-153B2	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Female	6000 MHz	Female	6.024 in	AMC Plug Right Angle U.FL (UMCC)	Black	50 Ohms	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Free Hanging (In-Line)	1.37	Coaxial Cable OD Coaxial Cable	1.37 mm	Free Hanging (In-Line)
