SJS85 Series

Catalog

CONN PLUG FMALE 9POS GOLD CRIMP

Part	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Mounting Type	Shell Size - Insert	Shell Size - Insert	Connector Type	Termination	Features	Number of Positions	Contact Finish - Mating	Fastening Type	Primary Material	Ingress Protection	Ingress Protection Description	Ingress Protection IP Rating	Material Flammability Rating	Contact Type	Housing Color	Type	Contact Shape	Contact Size	Note	Shielding
McGill Microwave Systems SJS850911	155 °C	-65 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	10	10	Female Sockets Plug	Crimp	Dust Cap	9	Gold	Bayonet Lock	Plastic	Environment Sealed

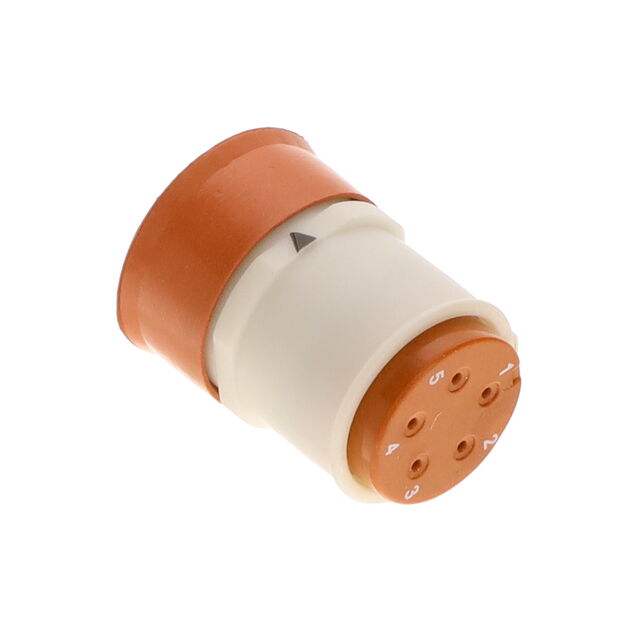

McGill Microwave Systems SJS850500	155 °C	-65 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	8	8	Receptacle Housing		Dust Cap	5		Bayonet Lock			Dust Tight Waterproof	IP67	UL94 V-0	Crimp	White	For Male Pins	Circular	22	Contacts Not Included	Unshielded
McGill Microwave Systems SJS850510	155 °C	-65 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	8	8	Plug Housing		Coupling Nut Dust Cap	5		Bayonet Lock			Dust Tight Waterproof	IP67	UL94 V-0	Crimp	White	For Female Sockets	Circular	22	Contacts Not Included	Unshielded

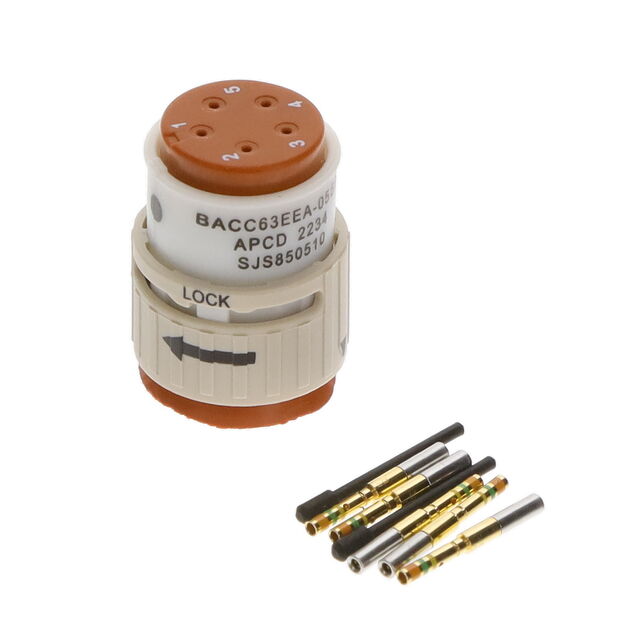

McGill Microwave Systems SJS850511	155 °C	-65 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	8	8	Female Sockets Plug	Crimp	Dust Cap	5	Gold	Bayonet Lock	Plastic	Environment Sealed
McGill Microwave Systems SJS850501	155 °C	-65 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	8	8	Male Pins Receptacle	Crimp	Dust Cap	5	Gold	Bayonet Lock	Plastic	Environment Sealed
