KD05 Series

Catalog

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X5

Part	Number of Levels	Features	Pitch	Color	Type	Positions Per Level	Termination Style	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Voltage - UL	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Plug Wire Entry Angle	Wire Strip Length (Min)	Wire Strip Length (Max)	Material Flammability Rating	Contact Material	Housing Material	Insulation Height

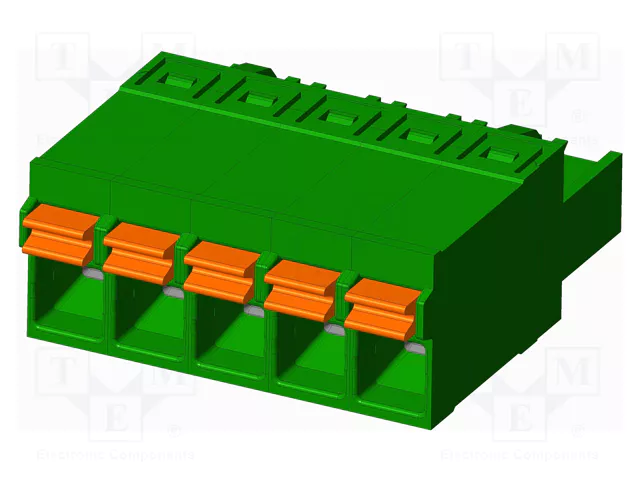

McGill Microwave Systems KD0550500000G	1	Retention Latches (Non-Wire Side)	5.08 mm	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	300 V	12 A	24 AWG	14 AWG	Tin	180 °	11 mm	12 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.429 in

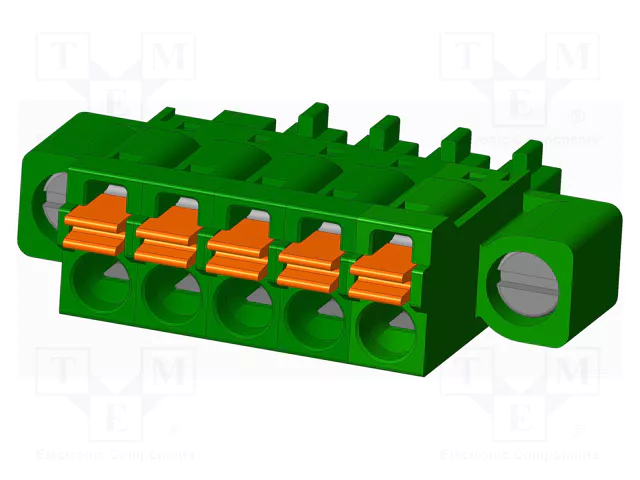

McGill Microwave Systems KD0570510000G	1	Mating Flange Retention Latches (Wire Side)	0.197 in	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	300 V	12 A	24 AWG	14 AWG	Tin	180 °	11 mm	12 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.429 in
McGill Microwave Systems KD0530520000G	1	Latch Lock	0.15 in	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	300 V	5.5 A	24 AWG	16 AWG	Tin	180 °	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in
McGill Microwave Systems KD0530500000G	1		0.15 in	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	300 V	5.5 A	24 AWG	16 AWG	Tin	180 °	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in
McGill Microwave Systems KD0530510000G	1	Mating Flange	0.15 in	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	300 V	5.5 A	24 AWG	16 AWG	Tin	180 °	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in
McGill Microwave Systems KD0510500000G	1		0.138 in	Green	Female Sockets Plug	5	Push-In Spring Screwless - Leg Spring	5	-40 °C	115 °C	Free Hanging (In-Line)	160 V	5.5 A	24 AWG	16 AWG	Tin	180 °	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in
