ADM7150 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

800MA, ULTRA LOW NOISE/HIGH PSRR LDO

Part	Current - Quiescent (Iq)	Protection Features	Voltage - Input (Max)	Output Type	Current - Output	Number of Regulators	Output Configuration	Voltage - Output (Min/Fixed)	Mounting Type	PSRR (Minimum)	PSRR (Maximum)	Package Name	Package Length	Package Features	Package Width	Current - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Package / Case	Supplied Contents	Board Type	Voltage - Output	Contents	Utilized IC / Part	Regulator Type	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Voltage - Input (Maximum)	Voltage - Input (Minimum)
Analog Devices Inc./Maxim Integrated ADM7150ARDZ-3.3	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	3.3 V	Surface Mount	62 dB	94 dB	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	12 mA	125 °C	-40 °C	Enable
Analog Devices Inc./Maxim Integrated ADM7150ARDZ-3.0	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	3 V	Surface Mount			8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	12 mA	125 °C	-40 °C	Enable
Analog Devices Inc./Maxim Integrated ADM7150ARDZ-2.8	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	2.8 V	Surface Mount			8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	12 mA	125 °C	-40 °C	Enable
Analog Devices Inc./Maxim Integrated ADM7150ACPZ-4.5-R2	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	4.5 V	Surface Mount			8-LFCSP-WD	3 mm		3 mm	12 mA	125 °C	-40 °C	Enable	8-WFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADM7150ACPZ-1.8-R7	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	1.8 V	Surface Mount			8-LFCSP-WD	3 mm		3 mm	12 mA	125 °C	-40 °C	Enable	8-WFDFN Exposed Pad CSP

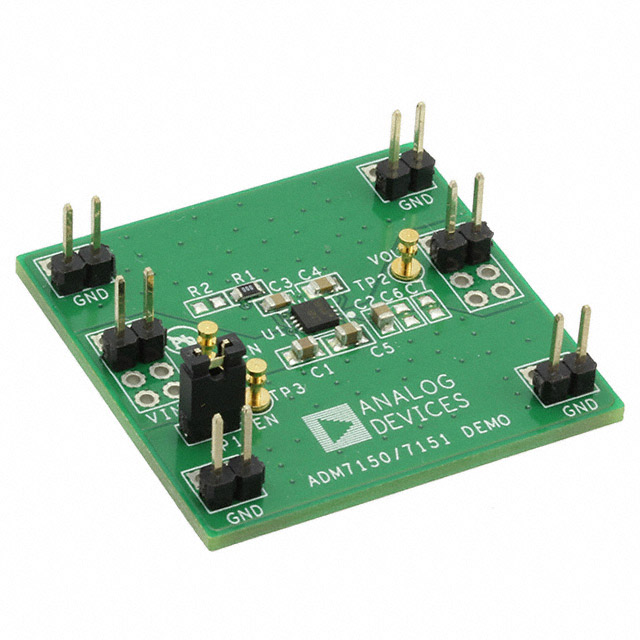

Analog Devices Inc./Maxim Integrated ADM7150CP-EVALZ					800 mA																Board(s)	Fully Populated	5 VDC	Board	ADM7150	Positive Fixed	1	Single	1	16 V	4.5 V
Analog Devices Inc./Maxim Integrated ADM7150ARDZ-3.3-R7	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	3.3 V	Surface Mount	62 dB	94 dB	8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	12 mA	125 °C	-40 °C	Enable
Analog Devices Inc./Maxim Integrated ADM7150ACPZ-3.3-R7	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	3.3 V	Surface Mount	62 dB	94 dB	8-LFCSP-WD	3 mm		3 mm	12 mA	125 °C	-40 °C	Enable	8-WFDFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADM7150ARDZ-3.0-R7	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	3 V	Surface Mount			8-SOIC 8-SOIC-EP	0.154 in	Exposed Pad	3.9 mm	12 mA	125 °C	-40 °C	Enable
Analog Devices Inc./Maxim Integrated ADM7150ACPZ-4.5-R7	7 mA	Over Temperature Short Circuit	16 V	Fixed	800 mA	1	Positive	4.5 V	Surface Mount			8-LFCSP-WD	3 mm		3 mm	12 mA	125 °C	-40 °C	Enable	8-WFDFN Exposed Pad CSP
