RT06147 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
PLUG, 7 POSITION, FEMALE, SHELL SIZE 14, AND END CAP WITH REDUCED DIAMETER INDIVIDUAL WIRE SEALING, RANGE 14 - 24AWG /BAG ROHS C
| Part | Contact Size | Housing Color | Orientation | Number of Positions | Contact Shape | Shielding | Operating Temperature (Max) | Operating Temperature (Min) | Note | Type | Mounting Type | Shell Size - Insert Width | Shell Size - Insert Length | Material Flammability Rating | Shell Finish | Ingress Protection Description | Ingress Protection IP Rating | Contact Type | Fastening Type | Connector Type | Shell Material | Features | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | |||||||||||||||||||||||

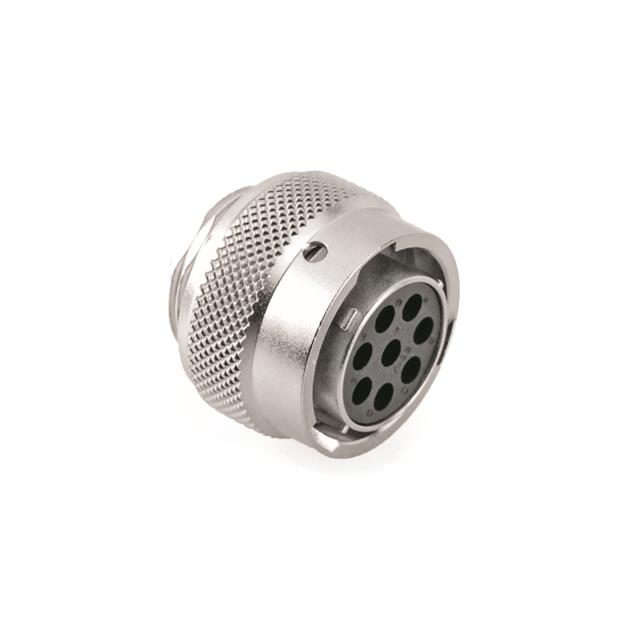

 McGill Microwave Systems | 16 S | Silver | N (Normal) | 7 | Circular | Shielded | 125 °C | -40 °C | Contacts Not Included | For Female Sockets | Free Hanging (In-Line) | 7 mm | 14 mm | UL94 V-0 | Nickel | Dust Tight Waterproof | IP67 | Crimp | Bayonet Lock | Plug Housing | Zinc Alloy | Coupling Nut | Thermoplastic |
McGill Microwave Systems | |||||||||||||||||||||||

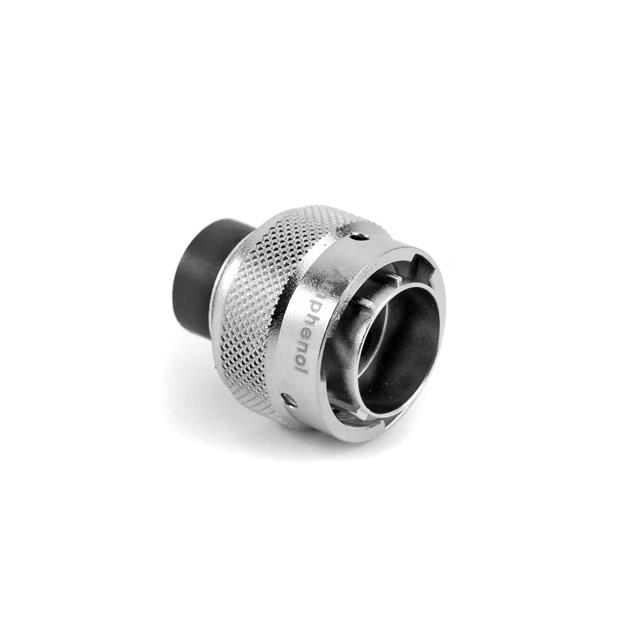

 McGill Microwave Systems | 16 S | Silver | N (Normal) | 7 | Circular | Shielded | 125 °C | -40 °C | Contacts Not Included | For Male Pins | Free Hanging (In-Line) | 7 mm | 14 mm | UL94 V-0 | Nickel | Dust Tight Waterproof | IP67 | Crimp | Bayonet Lock | Plug Housing | Zinc Alloy | Coupling Nut | Thermoplastic |
