6STD09S Series

Catalog

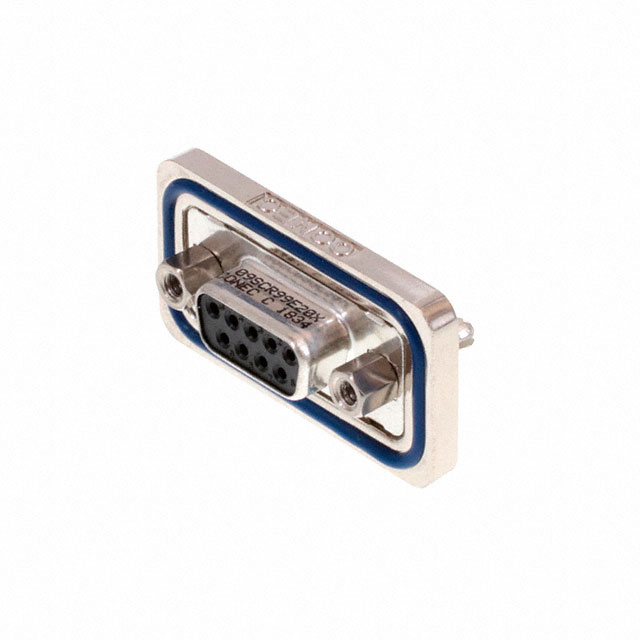

CONN D-SUB RCPT 9POS VERT SLDR

Part	Color	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Connector Style	Contact Finish Thickness	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Shell Size	Connector Layout	Termination	Contact Type	Mounting Type	Flange Feature	Number of Positions	Finish	Shell Material	Contact Finish	Number of Rows	Features	Current Rating	Material Flammability Rating	Wire Gauge	Voltage Rating	Contact Material	Contact Form	Contact Finish Thickness (string set options)	Contact Finish Thickness	Backset Spacing
McGill Microwave Systems 6STD09SCR99E20X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	30 µin	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Through Hole	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2	Board Lock
McGill Microwave Systems 6STD09SAM99B30X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	8 µin	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder Cup	Signal	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2		7.5 A	UL94 V-0	20 AWG	125 V	Copper Alloy	Machined
McGill Microwave Systems 6STD09SAR99B30X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Panel Mount Through Hole	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2		7.5 A	UL94 V-0		125 V	Copper Alloy	Machined	Flash	Flash
McGill Microwave Systems 6STD09SAR99E20X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Panel Mount Through Hole	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2	Board Lock	7.5 A	UL94 V-0		125 V	Copper Alloy	Machined	Flash	Flash
McGill Microwave Systems 6STD09SAR99E10X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Panel Mount Through Hole	Female Screwlock (M3) Mating Side	9	Tin Plated	Copper Alloy	Gold	2	Board Lock	7.5 A	UL94 V-0		125 V	Copper Alloy	Machined	Flash	Flash
McGill Microwave Systems 6STD09SCT99S40X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	30 µin	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2	Board Lock Mounting Brackets	5 A	UL94 V-0			Copper Alloy				0.189 in
McGill Microwave Systems 6STD09SAU99R40X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder	Signal	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	9	Tin Plated	Copper Alloy	Gold	2	Board Lock Mounting Brackets	7.5 A	UL94 V-0		125 V	Copper Alloy	Machined	Flash	Flash	0.276 in
McGill Microwave Systems 6STD09SAM99B20X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder Cup	Signal	Panel Mount	Female Screwlock (M3) Mating Side	9	Tin Plated	Copper Alloy	Gold	2		7.5 A	UL94 V-0	20 AWG	125 V	Copper Alloy	Machined	Flash	Flash
McGill Microwave Systems 6STD09SAM99B70X	Black	105 °C	-25 °C	Glass Filled Polybutylene Terephthalate (PBT)	D-Sub	0	Dust Tight Waterproof	IP67	Female Sockets Receptacle	1	DE E	Solder Cup	Signal	Panel Mount	Mating Side (4-40)	9	Tin Plated	Copper Alloy	Gold	2	Mounting Hardware	7.5 A	UL94 V-0	20 AWG	125 V	Copper Alloy	Machined	Flash	Flash
