031-63 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

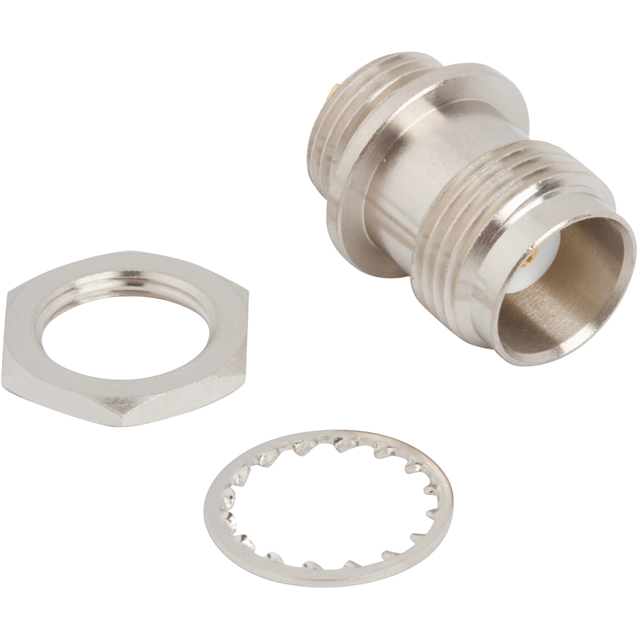

TNC STRAIGHT JACK, SOLDER CUP, B
| Part | Body Finish | Operating Temperature (Max) | Operating Temperature (Min) | Includes Total Count | Includes | Body Material | Center Contact Plating | Mating Cycles | Dielectric Material | Impedance | Mounting Type | Fastening Type | Center Contact Material | Frequency - Max | Connector Style | Mounting Feature | Contact Termination | Number of Ports | Shield Termination | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Nickel | 155 °C | -40 °C | 3 pcs | Connector Lockwasher Nut | Brass | Gold | 500 cycles | Polytetrafluoroethylene (PTFE) | 50 Ohm | Panel Mount | Threaded | Beryllium Copper | 2 GHz | TNC | Bulkhead Rear Side Nut | Solder Cup | 1 | Solder | Female Socket Jack | Silver |
