Q-2C03H0 Series

Catalog

COAX CBL SMB TO N-TYPE 9.8"

Part	1st Contact Gender	Overall Impedance	1st Connector	1st Connector Mounting Type	2nd Connector	Style	1st Connector Mounting Feature	Frequency - Max	2nd Contact Gender	2nd Connector Mounting Type	Length	Color	Features	Cable Type	Length (ft)
McGill Microwave Systems Q-2C03H0005.25M	Male	50 Ohms	Right Angle SMB Jack	Panel Mount	N-Type Plug Right Angle	N-Type SMB	Bulkhead Front Side Nut	4 GHz	Male	Free Hanging (In-Line)	9.843 in	Copper	Shielded	316 RG
McGill Microwave Systems Q-2C03H0005001M	Male	50 Ohms	Right Angle SMB Jack	Panel Mount	N-Type Plug Right Angle	N-Type SMB	Bulkhead Front Side Nut	4 GHz	Male	Free Hanging (In-Line)	39.4 in	Copper	Shielded	316 RG

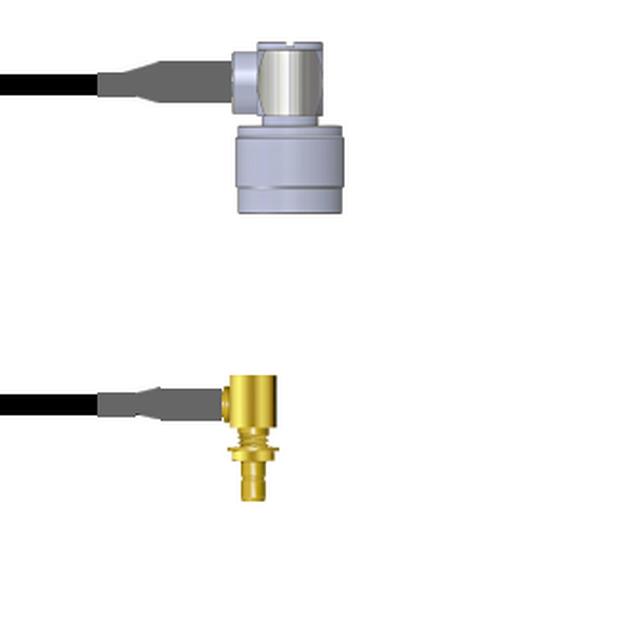

McGill Microwave Systems Q-2C03H0003012i	Male	50 Ohms	Right Angle SMB Jack	Panel Mount	N-Type Plug Right Angle	N-Type SMB	Bulkhead Front Side Nut	4 GHz	Male	Free Hanging (In-Line)	12 in	Black	Shielded	174 RG
McGill Microwave Systems Q-2C03H00051.5M	Male	50 Ohms	Right Angle SMB Jack	Panel Mount	N-Type Plug Right Angle	N-Type SMB	Bulkhead Front Side Nut	4 GHz	Male	Free Hanging (In-Line)	59.1 in	Copper	Shielded	316 RG	4.9 ft
McGill Microwave Systems Q-2C03H0005012i	Male	50 Ohms	Right Angle SMB Jack	Panel Mount	N-Type Plug Right Angle	N-Type SMB	Bulkhead Front Side Nut	4 GHz	Male	Free Hanging (In-Line)	12 in	Copper	Shielded	316 RG
