KD04 Series

Catalog

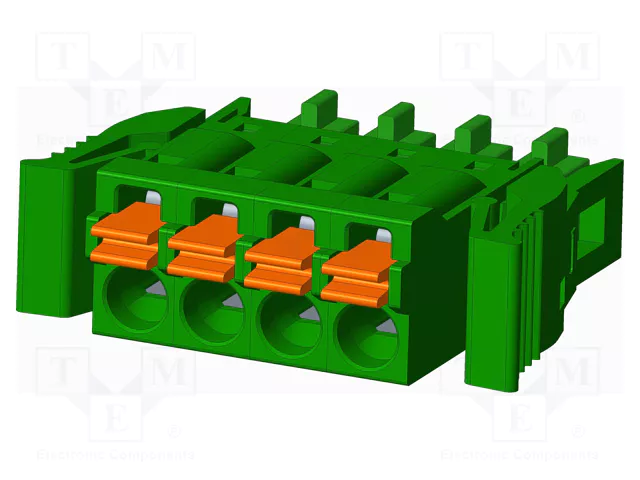

TERM BLOCK PLUG 4POS STR 3.5MM

Part	Number of Positions	Color	Type	Plug Wire Entry Angle	Current - UL	Pitch	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Levels	Termination Style	Voltage - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Wire Strip Length (Min)	Wire Strip Length (Max)	Material Flammability Rating	Contact Material	Housing Material	Insulation Height	Features
McGill Microwave Systems KD041050A000G	4	Green	Female Sockets Plug	180 °	5.5 A	0.138 in	2	-40 °C	115 °C	Free Hanging (In-Line)	2	Push-In Spring Screwless - Leg Spring	160 V	24 AWG	16 AWG	Tin	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.634 in
McGill Microwave Systems KD0430520000G	4	Green	Female Sockets Plug	180 °	5.5 A	0.15 in	4	-40 °C	115 °C	Free Hanging (In-Line)	1	Push-In Spring Screwless - Leg Spring	300 V	24 AWG	16 AWG	Tin	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in	Latch Lock
McGill Microwave Systems KD0470500000G	4	Green	Female Sockets Plug	180 °	12 A	0.197 in	4	-40 °C	115 °C	Free Hanging (In-Line)	1	Push-In Spring Screwless - Leg Spring	300 V	24 AWG	14 AWG	Tin	11 mm	12 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.429 in	Retention Latches (Non-Wire Side)
McGill Microwave Systems KD041051A000G	4	Green	Female Sockets Plug	180 °	5.5 A	0.138 in	2	-40 °C	115 °C	Free Hanging (In-Line)	2	Push-In Spring Screwless - Leg Spring	160 V	24 AWG	16 AWG	Tin	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.634 in
McGill Microwave Systems KD0450520000G	4	Green	Female Sockets Plug	180 °	12 A	5.08 mm	4	-40 °C	115 °C	Free Hanging (In-Line)	1	Push-In Spring Screwless - Leg Spring	300 V	24 AWG	14 AWG	Tin	11 mm	12 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.429 in	Latch Lock
McGill Microwave Systems KD0430500000G	4	Green	Female Sockets Plug	180 °	5.5 A	0.15 in	4	-40 °C	115 °C	Free Hanging (In-Line)	1	Push-In Spring Screwless - Leg Spring	300 V	24 AWG	16 AWG	Tin	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in
McGill Microwave Systems KD0410510000G	4	Green	Female Sockets Plug	180 °	5.5 A	0.138 in	4	-40 °C	115 °C	Free Hanging (In-Line)	1	Push-In Spring Screwless - Leg Spring	160 V	24 AWG	16 AWG	Tin	9 mm	10 mm	UL94 V-0	Phosphor Bronze	Thermoplastic	0.307 in	Mating Flange
