930-10 Series

Catalog

RF CONNECTORS / COAXIAL CONNECTORS RIGHT ANGLE PLUG .086 SEMI-RIGID

Part	Contact Termination	Cable Group Diameter (Default)	Cable Group	Cable Group Diameter (Semi Rigid)	Shield Termination	Connector Type	Fastening Type	Connector Style	Center Contact Material	Frequency - Max	Housing Color	Number of Ports	Impedance	Mounting Type	Body Finish	Voltage Rating	Body Material	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Includes Total Count	Includes	Convert From (Adapter End)	Style	Conversion Type	Center Gender	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Adapter Series	Insertion Loss
McGill Microwave Systems 930-104P-51A	Solder	0.085 in	RG-405	0.086 in	Solder	Male Pin Plug	Snap-On	QMA	Brass	6000 MHz	Gold	1	50 Ohm	Free Hanging (In-Line) Right Angle	Gold	480 VAC	Brass	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	100 cycles
McGill Microwave Systems 930-106P-51A	Solder		Belden 9258 LMR-240		Crimp	Male Pin Plug	Snap-On	QMA	Brass	3 GHz	Silver	1	50 Ohm	Free Hanging (In-Line) Right Angle	White Bronze	480 VAC	Brass	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	100 cycles	3 pcs	Connector End Cap Ferrule
McGill Microwave Systems 930-100A-51S							Snap-On Threaded		Beryllium Copper	6000 MHz			50 Ohm	Free Hanging (In-Line)	White Bronze		Brass	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	500 cycles			Female Socket SMA Jack	Straight	Between Series	Female	QMA Jack	Female Socket	Jack to Jack	SMA to QMA	0.1 dB
McGill Microwave Systems 930-101A-51S							Snap-On Threaded		Beryllium Copper	6000 MHz			50 Ohm	Free Hanging (In-Line)	White Bronze		Brass	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	80 °C	100 cycles			Male Pin QMA Plug	Straight	Between Series	Female Male	SMA Jack	Female Socket	Plug to Jack	SMA to QMA

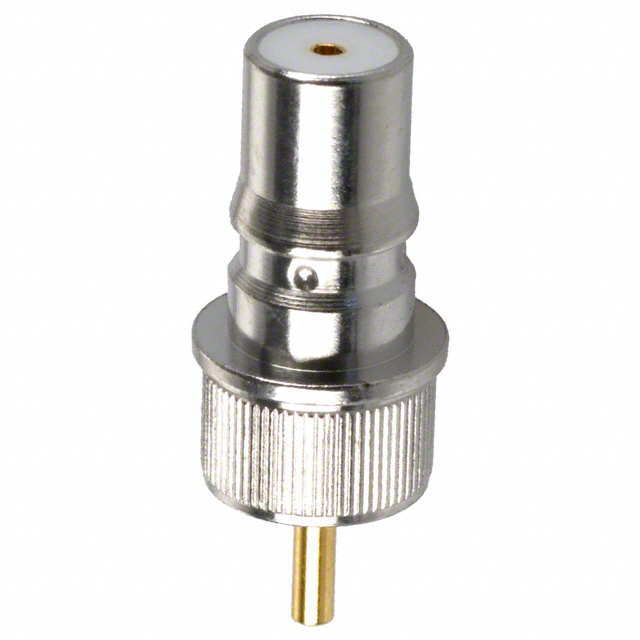

McGill Microwave Systems 930-105J-51S	Push On				Solder	Female Socket Recepture	Snap-On	QMA	Beryllium Copper	6000 MHz	Silver	1	50 Ohm	Free Hanging (In-Line)	White Bronze	480 VAC	Brass	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	80 °C	500 cycles
McGill Microwave Systems 930-103P-51A	Solder		RG-402	0.141 in	Solder	Male Pin Plug	Snap-On	QMA	Brass	6000 MHz	Gold	1	50 Ohm	Free Hanging (In-Line) Right Angle	Gold	480 VAC	Brass	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	100 cycles
McGill Microwave Systems 930-102J-51P	Solder				Solder	Female Socket Recepture	Snap-On	QMA	Beryllium Copper	6000 MHz	Gold	1	50 Ohm	Through Hole	Gold	480 VAC	Brass	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	80 °C	100 cycles
