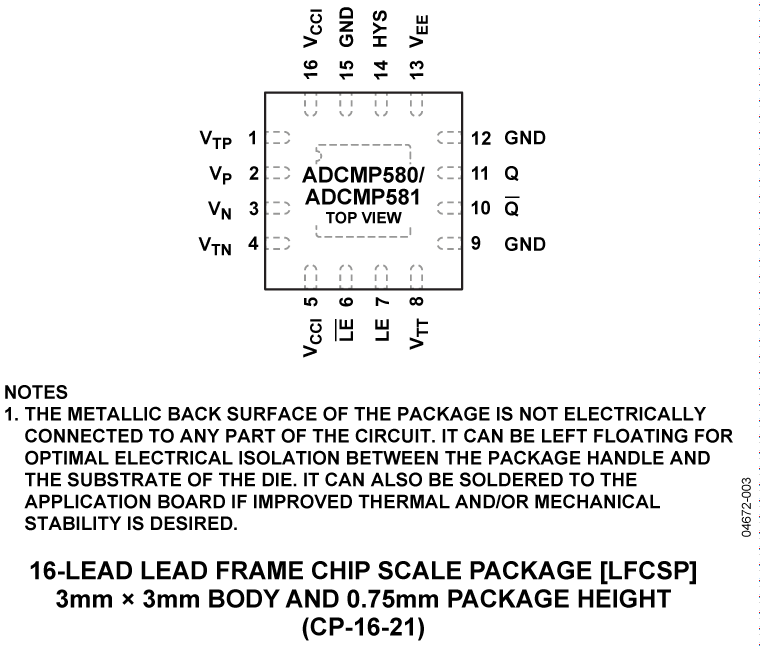

ADCMP580 Series

Catalog

BOARD EVAL FOR ADCMP580BCP

Part	Supplied Contents	Utilized IC / Part	Type	Contents	Function	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Dual) Minimum (Magnitude)	Supply Configuration	Voltage - Supply (Dual) Maximum (Magnitude)	Current - Input Bias (Max)	Output Type	Mounting Type	Hysteresis	Number of Elements	Current - Output (Typ)	Package / Case	Voltage - Input Offset (Max)	Propagation Delay (Max)	Current - Quiescent (Max)	PSRR (Typ)	CMRR (Typ)	Package Width	Package Name	Package Length
Analog Devices Inc./Maxim Integrated EVAL-ADCMP580BCPZ	Board(s)	ADCMP580	Interface	Board	Comparator
Analog Devices Inc./Maxim Integrated ADCMP580BCP-WP
Analog Devices Inc./Maxim Integrated ADCMP580BCPZ-R2			with Latch			125 °C	-40 °C	4.5 V	Dual Single	5.5 V	30 µA	CML Complementary	Surface Mount	1 mV	1	44 mA	16-WFQFN Exposed Pad CSP	10 mV	0.18 ns	8 mA	75 dB	60 dB	3 mm	16-LFCSP	3 mm
Analog Devices Inc./Maxim Integrated ADCMP580BCPZ-WP			with Latch			125 °C	-40 °C	4.5 V	Dual Single	5.5 V	30 µA	CML Complementary	Surface Mount	1 mV	1	44 mA	16-WFQFN Exposed Pad CSP	10 mV	0.18 ns	8 mA	75 dB	60 dB	3 mm	16-LFCSP	3 mm
Analog Devices Inc./Maxim Integrated ADCMP580BCP-R2
Analog Devices Inc./Maxim Integrated ADCMP580BCPZ-RL7			with Latch			125 °C	-40 °C	4.5 V	Dual Single	5.5 V	30 µA	CML Complementary	Surface Mount	1 mV	1	44 mA	16-WFQFN Exposed Pad CSP	10 mV	0.18 ns	8 mA	75 dB	60 dB	3 mm	16-LFCSP	3 mm
