320X125 Series

Catalog

D SUB ADAPTER, PLUG-PLUG, 9POS ROHS COMPLIANT: YES

Part	Mounting Type	Ingress Protection	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Convert To (Adapter End) Pin Count	Convert To (Adapter End)	Number of Rows	Connector Style	Contact Finish	Material Flammability Rating	Finish	Shell Material	Convert From (Adapter End) Pin Count	Convert From (Adapter End) Type	Convert From (Adapter End) Pin Gender	Features	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Includes Total Count	Includes	Housing Color
McGill Microwave Systems 320X12509X	Free Hanging (In-Line)	IP20	0	Flash	Flash	9 pins	D-Sub Pin Male	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	9	D-Sub	Male	Grounding Indents	7.5 A	125 °C	-55 °C	125 V	3 pcs	Connector Jack Screws	Yellow

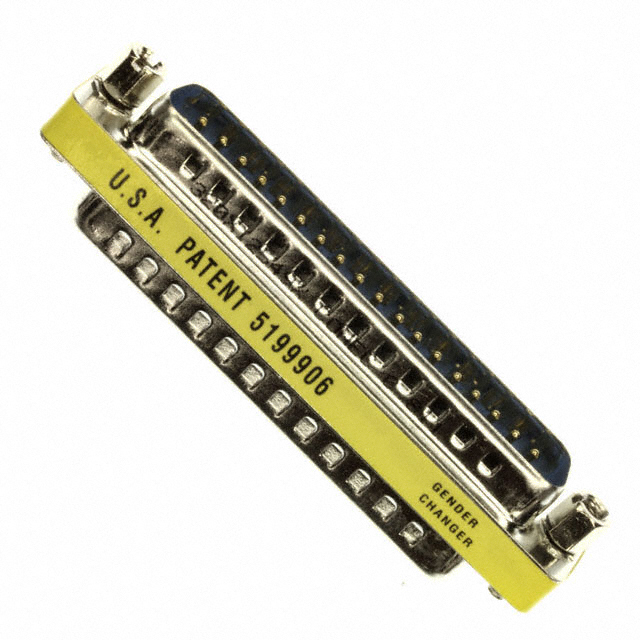

McGill Microwave Systems 320X12549X	Free Hanging (In-Line)	IP20	0	Flash	Flash	37 pins	D-Sub Pin Male	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	37 pins	D-Sub	Male	Grounding Indents	7.5 A	125 °C	-55 °C	125 V	3 pcs	Connector Jack Screws	Yellow
McGill Microwave Systems 320X12529X	Free Hanging (In-Line)	IP20	0	Flash	Flash	15 pins	D-Sub Pin Male	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	15 pins	D-Sub	Male	Grounding Indents	7.5 A	125 °C	-55 °C	125 V	3 pcs	Connector Jack Screws	Yellow
McGill Microwave Systems 320X12539X	Free Hanging (In-Line)	IP20	8 µin			15 pins	D-Sub Pin Female	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	15 pins	D-Sub	Female		7.5 A	125 °C	-55 °C	125 V	5 pcs	Connector Jack Screws	Yellow
McGill Microwave Systems 320X12559X	Free Hanging (In-Line)	IP20	8 µin			37 pins	D-Sub Pin Female	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	37 pins	D-Sub	Female		7.5 A	125 °C	-55 °C	125 V	5 pcs	Connector Jack Screws	Yellow
McGill Microwave Systems 320X12519X	Free Hanging (In-Line)	IP20	8 µin			9 pins	D-Sub Pin Female	2	Gender Changer	Gold	UL94 V-0	Tin Plated	Steel	9	D-Sub	Female		7.5 A	125 °C	-55 °C	125 V	5 pcs	Connector Jack Screws	Yellow
