XPEBTT Series

Catalog

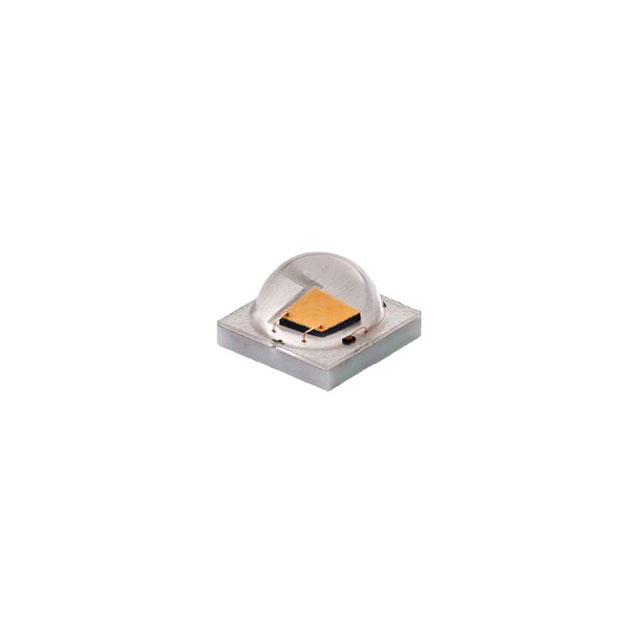

LED XLAMP XP-E TORCH WHT SMD

Part	Current - Max	Lumens/Watt	Viewing Angle	Package / Case	CCT (K) Minimum	CCT (K) Maximum	Height - Seated (Max)	Current - Test	CRI (Color Rendering Index) (Typ)	Size / Dimension Length	Size / Dimension Width	Color	Flux (Minimum)	Flux (Nominal)	Flux (Maximum)	Voltage - Forward (Vf) (Typ)	Mounting Type	Thermal Resistance of Package
CreeLED, Inc. XPEBTT-01-R250-00W80	1.5 A	95 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	340 lm	350 lm	360 lm	3.25 V	Surface Mount	10 °C/W
CreeLED, Inc. XPEBTT-01-R250-00U80	1.5 A	84 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	300 lm	310 lm	320 lm	3.25 V	Surface Mount	10 °C/W
CreeLED, Inc. XPEBTT-01-0000-00V80	1.5 A	90 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	320 lm	330 lm	340 lm	3.25 V	Surface Mount	10 °C/W
CreeLED, Inc. XPEBTT-01-0000-00W80	1.5 A	95 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	340 lm	350 lm	360 lm	3.25 V	Surface Mount	10 °C/W
CreeLED, Inc. XPEBTT-01-R250-00T80	1.5 A	79 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	280 lm	290 lm	300 lm	3.25 V	Surface Mount	10 °C/W
CreeLED, Inc. XPEBTT-01-R250-00W80	1.5 A	95 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	340 lm	350 lm	360 lm	3.25 V	Surface Mount
CreeLED, Inc. XPEBTT-01-R250-00Y80	1.5 A	101 lm/W	125 °	1414 (3535 Metric)	6000 K	10500 K	0.094 in	1.05 A	65	0.136 in	0.136 in	Cool White	360 lm	370 lm	380 lm	3.25 V	Surface Mount
