MA5RAP Series

Catalog

CONN M23 CIRCULAR PIN 12 POS RA PANEL MOUNT 12 TERMINAL 1 PORT BOX

Part	Operating Temperature (Min)	Operating Temperature (Max)	Features	Voltage Rating	Mounting Feature	Orientation	Mounting Type	Current Rating	Color	Fastening Type	Shell Finish	Shell Material	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Contact Finish - Mating	Connector Type	Shell Size - Insert	Termination	Voltage Rating (Type)	Shielding	Contact Shape	Material Flammability Rating	Contact Type	Contact Size	Note	Type	Housing Color	Insert Material
McGill Microwave Systems MA5RAP1202-KIT	-20 °C	130 °C	Backshell Rotatable	160 V	Flange	N (Normal)	Panel Mount Right Angle	10 A	Silver	Threaded	Nickel	Zinc Die Cast	12	Dust Tight Waterproof	IP67	Metal	Gold	Male Pins Receptacle	M23-12	Crimp
McGill Microwave Systems MA5RAP1702S-KIT	-20 °C	130 °C	Backshell Rotatable	125 V	Flange	N (Normal)	Panel Mount Right Angle	9 A	Silver	Threaded	Nickel	Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	Gold	Female Sockets Receptacle	M23-17	Crimp	DC
McGill Microwave Systems MA5RAP1601	-20 °C	130 °C	Backshell Rotatable		Flange	N (Normal)	Panel Mount Right Angle			Push-Twist	Nickel	Zinc Die Cast	16	Dust Tight Waterproof	IP67			Receptacle Housing	M23-16			Shielded	Circular	UL94 V-0	Crimp	1 mm	Contacts Not Included	For Female Sockets or Male Pins	Silver	Nylon 6/6 PA66 Polyamide
McGill Microwave Systems MA5RAP1202S-KIT	-20 °C	130 °C	Backshell Rotatable	160 V	Flange	N (Normal)	Panel Mount Right Angle	10 A	Silver	Threaded	Nickel	Zinc Die Cast	12	Dust Tight Waterproof	IP67	Metal	Gold	Female Sockets Receptacle	M23-12	Crimp

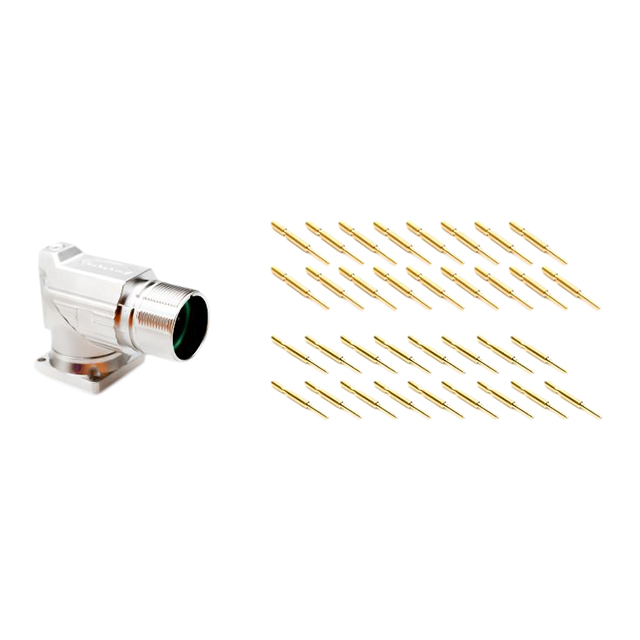

McGill Microwave Systems MA5RAP1702-KIT	-20 °C	130 °C	Backshell Rotatable	125 V	Flange	N (Normal)	Panel Mount Right Angle	9 A	Silver	Threaded	Nickel	Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	Gold	Male Pins Receptacle	M23-17	Crimp	DC
McGill Microwave Systems MA5RAP1701S-KIT	-20 °C	130 °C	Backshell Rotatable	125 V	Flange	N (Normal)	Panel Mount Right Angle	9 A	Silver	Threaded	Nickel	Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	Gold	Female Sockets Receptacle	M23-17	Crimp	DC
McGill Microwave Systems MA5RAP1701	-20 °C	130 °C	Backshell Rotatable		Flange	N (Normal)	Panel Mount Right Angle			Push-Twist	Nickel	Zinc Die Cast	17	Dust Tight Waterproof	IP67			Receptacle Housing	M23-17			Shielded	Circular	UL94 V-0	Crimp	1 mm	Contacts Not Included	For Female Sockets or Male Pins	Silver	Nylon 6/6 PA66 Polyamide
McGill Microwave Systems MA5RAP1701-KIT	-20 °C	130 °C	Backshell Rotatable	125 V	Flange	N (Normal)	Panel Mount Right Angle	9 A	Silver	Threaded	Nickel	Zinc Die Cast	17	Dust Tight Waterproof	IP67	Metal	Gold	Male Pins Receptacle	M23-17	Crimp	DC
McGill Microwave Systems MA5RAP1602S-KIT	-20 °C	130 °C	Backshell Rotatable	125 V	Flange	N (Normal)	Panel Mount Right Angle	9 A	Silver	Threaded	Nickel	Zinc Die Cast	16	Dust Tight Waterproof	IP67	Metal	Gold	Female Sockets Receptacle	M23-16	Crimp	DC
McGill Microwave Systems MA5RAP1202	-20 °C	130 °C	Backshell Rotatable		Flange	P	Panel Mount Right Angle			Push-Twist	Nickel	Zinc Die Cast	12	Dust Tight Waterproof	IP67			Receptacle Housing	M23-12			Shielded	Circular	UL94 V-0	Crimp	1 mm	Contacts Not Included	For Female Sockets or Male Pins	Silver	Nylon 6/6 PA66 Polyamide
