SJS81 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, CABLE MOUNT RECEPTACLE
| Part | Fastening Type | Note | Shell Material | Type | Mounting Type | Shielding | Contact Type | Contact Shape | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | Shell Size - Insert | Shell Size - Insert | Housing Color | Number of Positions | Contact Size | Material Flammability Rating | Ingress Protection Description | Ingress Protection IP Rating | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Detent Lock | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | For Male Pins | Free Hanging (In-Line) | Unshielded | Crimp | Circular | Receptacle Housing | -55 °C | 95 °C | 11 | 11 | White | 3 | 16 S | UL94 V-0 | Dust Tight Waterproof | IP67 | B |

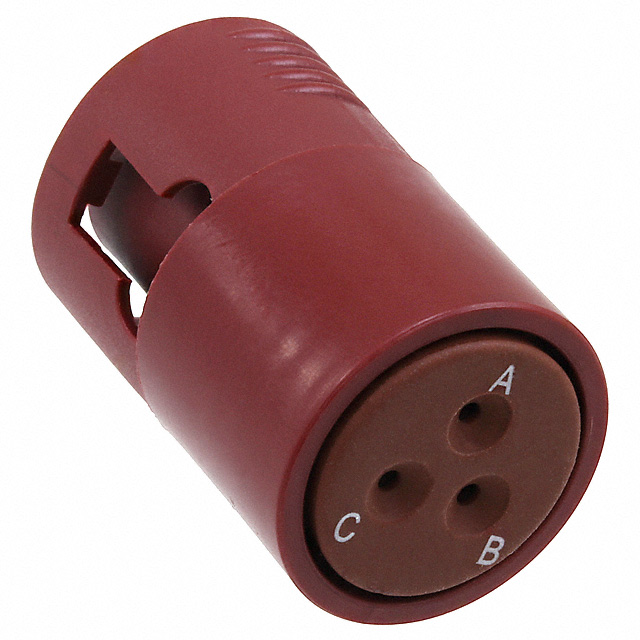

 McGill Microwave Systems | Detent Lock | Contacts Not Included | Nylon 6/6 Polyamide (PA66) | For Female Sockets | Free Hanging (In-Line) | Unshielded | Crimp | Circular | Plug Housing | -55 °C | 95 °C | 11 | 11 | Red | 3 | 16 S | UL94 V-0 | Dust Tight Waterproof | IP67 | A |
