97-3106A20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG FMALE 17P SOLDER CUP

Part	Fastening Type	Contact Finish - Mating	Mounting Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Connector Type	Number of Positions	Shell Finish	Primary Material	Color	Shell Material	Shielding	Orientation	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Applications	Backshell Material	Plating	Insert Material	Contact Material	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations 97-3106A-20-29S	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	17	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	N (Normal)	20	29	Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy
Amphenol Aerospace Operations 97-3106A-20-15P(946)	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Male Pins Plug	7	Black Zinc Alloy	Metal	Black	Aluminum Alloy	Unshielded	N (Normal)			Automotive Industrial	Aluminum Alloy	Black Zinc Alloy	DAP Diallyl Phthalate	Copper Alloy	15 mm	20 mm
Amphenol Aerospace Operations 97-3106A20-4PW-417	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Male Pins Plug	4	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	W			Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy	4 mm	20 mm
Amphenol Aerospace Operations 97-3106A20-11P	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Male Pins Plug	13	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	N (Normal)			Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy	11 mm	20 mm
Amphenol Aerospace Operations 97-3106A-20-23S	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	2	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	N (Normal)	20	23	Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy
Amphenol Aerospace Operations 97-3106A20-27SY-417	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	14	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	Y	20	27	Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy

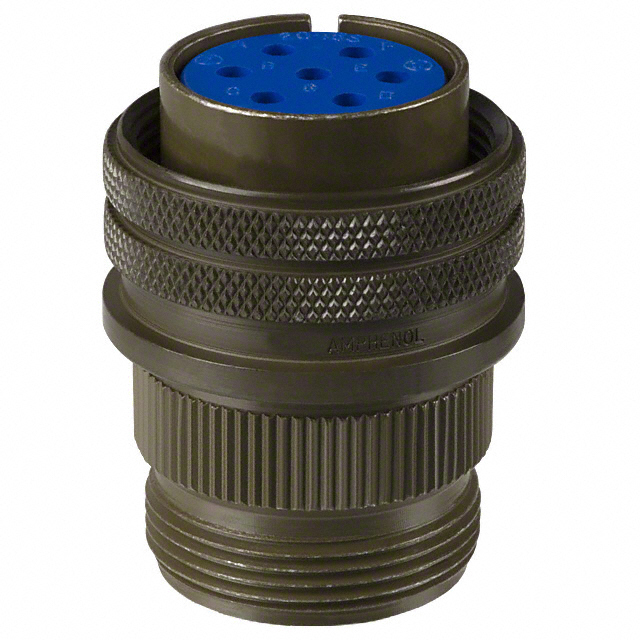

Amphenol Aerospace Operations 97-3106A-20-15S(946)	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	7	Black Zinc Alloy	Metal	Black	Aluminum Alloy	Unshielded	N (Normal)			Automotive Industrial	Aluminum Alloy	Black Zinc Alloy	DAP Diallyl Phthalate	Copper Alloy	15 mm	20 mm
Amphenol Aerospace Operations 97-3106A20-4SX-417	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	4	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	X			Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy	4 mm	20 mm
Amphenol Aerospace Operations 97-3106A-20-15P	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Male Pins Plug	7	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	N (Normal)			Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy	15 mm	20 mm
Amphenol Aerospace Operations 97-3106A20-27SX-914-1	Threaded	Silver	Free Hanging (In-Line)	Backshell Coupling Nut	125 °C	-55 °C	Solder Cup	Female Sockets Plug	14	Cadmium Olive Drab Chromate	Metal	Olive Drab	Aluminum Alloy	Unshielded	X	20	27	Automotive Industrial	Aluminum Alloy	Olive Drab Chromate over Cadmium	DAP Diallyl Phthalate	Copper Alloy
