AD8612 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

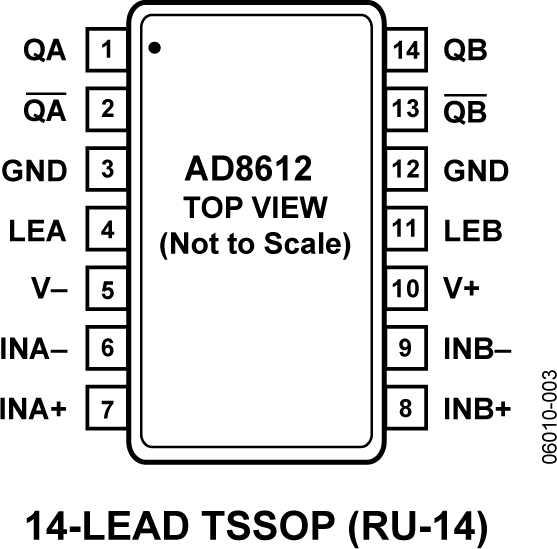

14-LEAD, ULTRAFAST 4 NS SINGLE SUPPLY COMPARATOR
| Part | Number of Elements | Package Width | Package Name | Package Length | Voltage - Input Offset (Max) | Type | Current - Input Bias (Max) | Output Type | Supply Configuration | Voltage - Supply (Single) Maximum | Voltage - Supply (Single) Minimum | PSRR (Typ) | CMRR (Typ) | Current - Quiescent (Typical) | Current - Quiescent (Max) | Propagation Delay (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 2 | 4.4 mm | 14-TSSOP | 0.173 in | 7 mV | with Latch | 6 µA | Complementary TTL | Dual Single | 5 V | 3 V | 73 dB | 85 dB | 4 mA | 10 mA | 5.5 ns | -40 °C | 85 °C | Surface Mount |
 Analog Devices Inc./Maxim Integrated | 2 | 4.4 mm | 14-TSSOP | 0.173 in | 7 mV | with Latch | 6 µA | Complementary TTL | Dual Single | 5 V | 3 V | 73 dB | 85 dB | 4 mA | 10 mA | 5.5 ns | -40 °C | 85 °C | Surface Mount |
Analog Devices Inc./Maxim Integrated | 2 | 4.4 mm | 14-TSSOP | 0.173 in | 7 mV | with Latch | 6 µA | Complementary TTL | Dual Single | 5 V | 3 V | 73 dB | 85 dB | 4 mA | 10 mA | 5.5 ns | -40 °C | 85 °C | Surface Mount |
