XC7Z045 Series

Catalog

IC SOC CORTEX-A9 800MHZ 676FCBGA

Part	Number of I/O	Speed	RAM Size	Package Length	Package Name	Package Width	Architecture	Primary Attributes	Logic Elements	Connectivity	Operating Temperature (Max)	Operating Temperature (Min)	Peripherals	Core Processor	Package / Case	P/N Breakdown	Suggested Programming Environment	For Use With/Related Products	Interconnect System	Utilized IC / Part	Platform	Type	Contents
AMD / Xilinx XC7Z045-2FFG676I	130	800 MHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	-40 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA

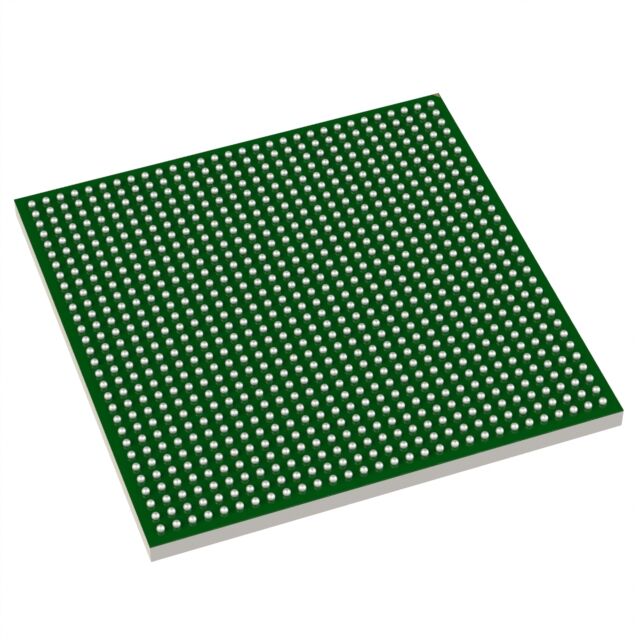

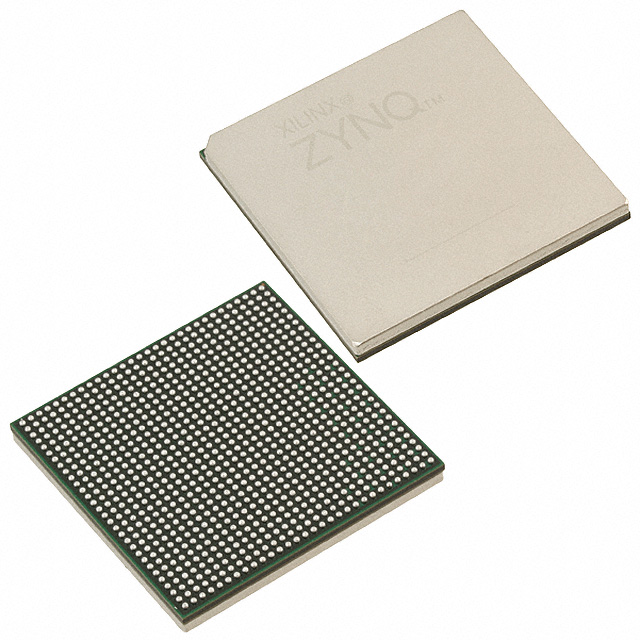

AMD / Xilinx XC7Z045-2FFG900CES	130	800 MHz	256 KB	31 mm	900-FCBGA	31 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	85 °C	0 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	900-BBGA FCBGA
AMD / Xilinx XC7Z045-L2FFG900I	130	800 MHz	256 KB	31 mm	900-FCBGA	31 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	-40 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	900-BBGA FCBGA
AMD / Xilinx XC7Z045-3FBG676E	130	1 GHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	0 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA
AMD / Xilinx XC7Z045-3FFG676E	130	1 GHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	0 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA
AMD / Xilinx EK-Z7-ZC706-G-J																J = Japan version does not ship with a power supply	Vivado	XC7Z045	FMC Pmod	XC7Z045	Zynq-7000 AP SoC ZC706 Japan PCIe Card	FPGA + MCU/MPU SoC	Accessories - Power Supply Not Included - Board Cable
AMD / Xilinx XC7Z045-L2FFG676I	130	800 MHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	-40 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA

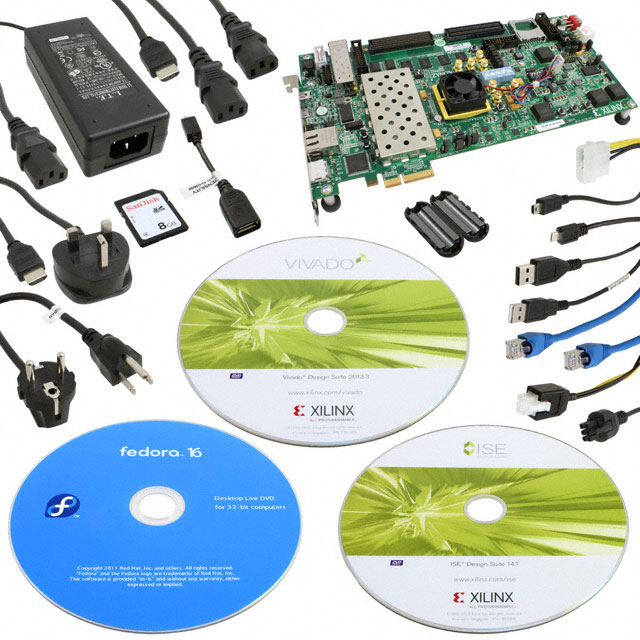

AMD / Xilinx EK-Z7-ZC706-G																	Vivado	XC7Z045	FMC Pmod	XC7Z045	Zynq-7000 AP SoC ZC706 PCIe Card	FPGA + MCU/MPU SoC	Accessories Board Cable Power Supply
AMD / Xilinx XC7Z045-L2FBG676I	130	800 MHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	-40 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA
AMD / Xilinx XC7Z045-2FFG676E	130	800 MHz	256 KB	27 mm	676-FCBGA	27 mm	FPGA MCU	350K Logic Cells Kintex™-7 FPGA	350 K Logic Cells	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	100 °C	0 °C	DMA	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	676-BBGA FCBGA
