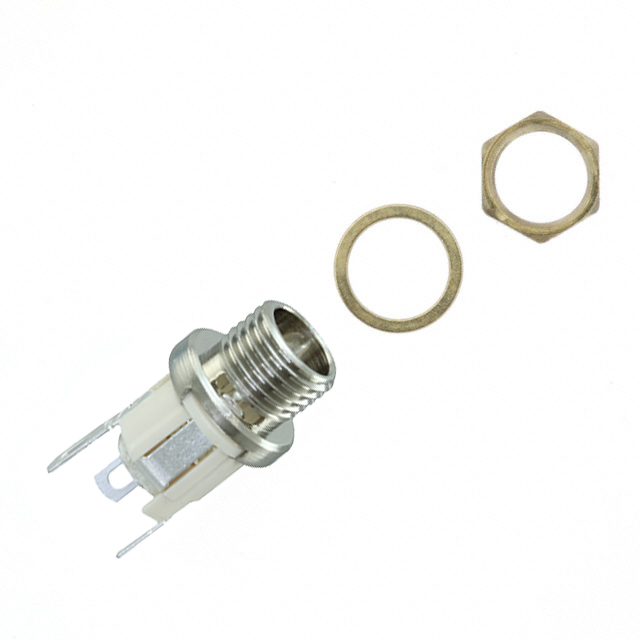

712AH
ActiveSwitchcraft Inc.
CONN DC POWER F 2 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
712AH
ActiveSwitchcraft Inc.
CONN DC POWER F 2 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 712AH | 712A Series |
|---|---|---|
| Actual Diameter | - | 2.5 mm |
| Actual Diameter | - | 0.098 " |
| Actual Diameter | - | 0.217 " |
| Actual Diameter | - | 5.5 mm |
| Actual Diameter | - | 2.5 mm |
| Actual Diameter | - | 0.098 in |
| Body Color | Silver, Black | Silver, Black |
| Body Material | Copper Alloy | Brass, Copper Alloy |
| Connector Type | Jack | Jack |
| Contact Material | Copper Alloy | Brass, Copper Alloy |
| Contact Material - Plating | - | Tin |
| Contact Material - Plating [custom] | Nickel | Nickel |
| Current Rating (Amps) | - | 5 A |
| Features | - | Strain Relief |
| Gender | Male | Male |
| Housing Material | Thermoplastic | Acrylonitrile Butadiene Styrene (ABS), Thermoplastic |
| Includes | Connector, Washer, Nut | Mounting Hardware, Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 2.5 mm ID | 2.5 - 5.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 " | 0.098 - 0.217 " |
| Insulation Color | - | Silver, Black |
| Internal Switch(s) | Single Switch | Single Switch |
| Internal Switch(s) | - | False |
| Mating Length/Depth | - | 0.374 in |
| Mating Length/Depth | - | 9.5 mm |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole | Through Hole, Free Hanging (In-Line) |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Number of Positions/Contacts | - | 2 |
| Number of Positions/Contacts | - | 2 |
| Operating Temperature | - | 65 - 105 °C |
| Operating Temperature | - | -40 °C |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Through Hole | Solder Cup, Solder Eyelet, Through Hole, Solder Eyelet(s) |
| Thread Size | 5/16"-32 | M11x1, 5/16"-32 |
| Voltage - Rated | 48 V | 24 - 48 V |
712A Series
DC POWER JACK, SHIELDED, FRONT P
| Part | Insulation Color | Mounting Feature | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Mating Length/Depth | Mating Length/Depth | Shielding | Body Material | Housing Material | Termination | Voltage - Rated | Thread Size | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating [custom] | Gender | Current Rating (Amps) | Includes | Body Color | Connector Type | Contact Material | Mounting Type | Internal Switch(s) | Number of Positions/Contacts | Contact Material - Plating | Actual Diameter [diameter] | Actual Diameter [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 712AFMS | Silver | Bulkhead - Rear Side Nut | 2 | 2 | 2.5 mm | 0.098 " | 0.217 " | 5.5 mm | 0.374 in | 9.5 mm | Shielded | Brass | Acrylonitrile Butadiene Styrene (ABS) | Solder Cup, Solder Eyelet | 48 V | M11x1 | 2.5 mm, 5.5 mm | 0.098 ", 0.217 " | 65 °C | -40 °C | Nickel | Male | 5 A | Mounting Hardware | Silver | Jack | Brass | ||||||||
Switchcraft Inc. 712AH | Unshielded | Copper Alloy | Thermoplastic | Through Hole | 48 V | 5/16"-32 | 2.5 mm ID | 0.098 " | Nickel | Male | Connector, Nut, Washer | Black, Silver | Jack | Copper Alloy | Through Hole | Single Switch | 2 Conductors, 3 Conductors | ||||||||||||||||||
Switchcraft Inc. 712ACF | Black | Unshielded | Copper Alloy | Thermoplastic | Solder Eyelet(s) | 24 VDC | 2.5 mm ID | 0.098 " | 105 ░C | -40 °C | Male | 5 A | Black, Silver | Jack | Copper Alloy | Free Hanging (In-Line) | 2 Conductors, 3 Conductors | Tin | 2.5 mm | 0.098 in | Strain Relief | ||||||||||||||
Switchcraft Inc. 712AC | Black | Unshielded | Copper Alloy | Thermoplastic | Solder Eyelet(s) | 24 VDC | 2.5 mm ID | 0.098 " | 105 ░C | -40 °C | Male | 5 A | Black, Silver | Jack | Copper Alloy | Free Hanging (In-Line) | 2 Conductors, 3 Conductors | Tin | 2.5 mm | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.09 | |
| 10 | $ 5.43 | |||
| 25 | $ 4.90 | |||
| 50 | $ 4.54 | |||
| 100 | $ 4.21 | |||
| 300 | $ 3.76 | |||
| 500 | $ 3.57 | |||
| 1000 | $ 3.33 | |||
| 2500 | $ 3.08 | |||
Description
General part information
712A Series
Power Barrel Connector Jack 2.50mm ID (0.098") Through Hole
