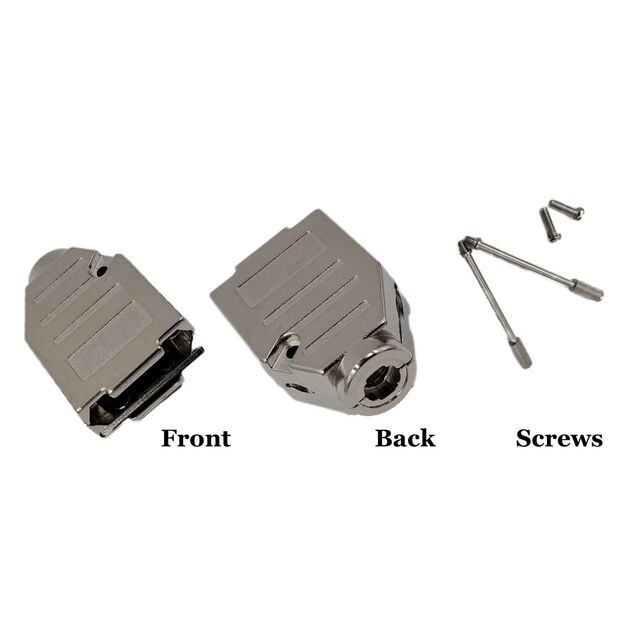

DSC-15HFMD-KIT
ActiveCompuCablePlusUSA
D-SUB DB15 HD F SLDR MTL DLX KIT
DSC-15HFMD-KIT
ActiveCompuCablePlusUSA
D-SUB DB15 HD F SLDR MTL DLX KIT
Description
General part information
DSC-15HFMD-KIT
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC-15HFMD-KIT |
|---|---|
| Color | Silver |
| Connector Layout | High Density, DE, E |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Type | Signal |
| Current Rating | 3 A |
| Features | Assembly |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder |
| Wire Gauge | 20 AWG |
