1-1337443-0

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 75 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BNC JACK STR 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337443-0

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-59B, 140, 62A, 210
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms

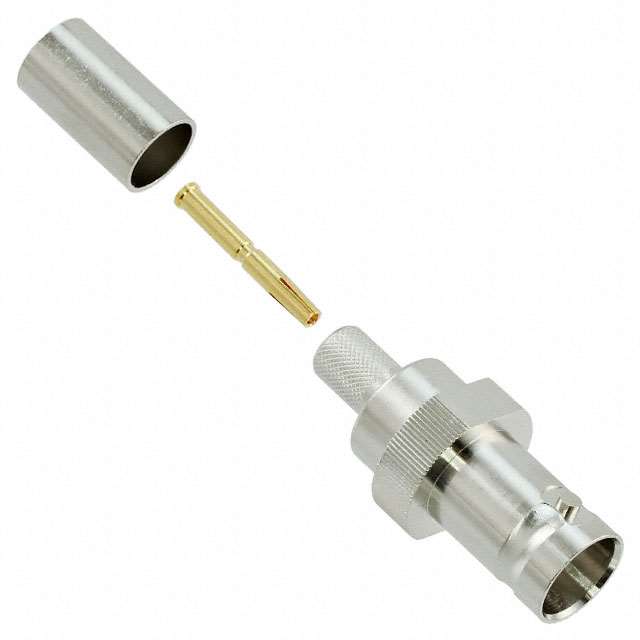

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

CONN BNC JACK STR 75 OHM SOLDER

Part	Mating Cycles	Fastening Type	Center Contact Plating	Dielectric Material	Number of Ports	Housing Color	Frequency - Max [Max]	Mounting Type	Cable Group	Body Material	Voltage Rating	Shield Termination	Center Contact Material	Includes	Connector Type	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Contact Termination	Body Finish	Connector Style
TE Connectivity AMP Connectors 1-1337443-0	500	Bayonet Lock	Gold	Polytetrafluoroethylene (PTFE)	1	Silver	2 GHz	Free Hanging (In-Line)	140, 210, 62A, RG-59B	Brass	500 V	Crimp	Brass	1 Connector, 1 Contact, 1 Ferrule	Female Socket, Jack	0.2 dB	-65 ░C	165 °C	75 Ohms	Solder	Nickel	BNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Solder
