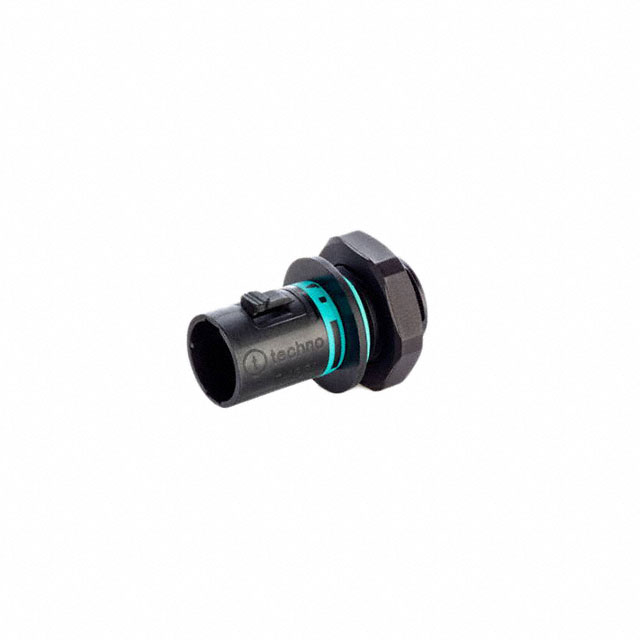

AC 167 REST/2 M16

Active

Adels-Contact

CONN PLUG 2POS PNLMT IP68 SCREW

Search across all available documentation for this part.

Active

Adels-Contact

CONN PLUG 2POS PNLMT IP68 SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC 167 REST/2 M16	AC 167 Series

Accessory Type	-	Cap (Cover)
Color	-	Black
Connector Type	Plug	Plug, Socket
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	10 A
Fastening Type	Latch Lock	Latch Lock
For Use With/Related Products	-	AC167 Series Socket, AC167 Series Plug
Housing Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	-	Thermoplastic Elastomer (TPE)
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	2	2
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Screw	Screw
Voltage Rating	250 VDC	250 VDC

CONN PLUG 2POS PNLMT IP68 SCREW

Part	Fastening Type	Termination	Number of Positions	Housing Color	Voltage Rating	Style	Current Rating (Amps)	Connector Type	Ingress Protection	Contact Material	For Use With/Related Products	Color	Material	Accessory Type	Mounting Type
Adels-Contact AC 167 REST/2 M16	Latch Lock	Screw	2	Black	250 VDC	Board to Cable/Wire	10 A	Plug	IP68 - Dust Tight, Waterproof	Brass
Adels-Contact AC 167 RVKB/2 M16											AC167 Series Socket	Black	Thermoplastic Elastomer (TPE)	Cap (Cover)
Adels-Contact AC 167 REBU/2 M16	Latch Lock	Screw	2	Black	250 VDC	Board to Cable/Wire	10 A	Socket	IP68 - Dust Tight, Waterproof	Brass
Adels-Contact AC 167 RVKS M16											AC167 Series Plug	Black	Thermoplastic Elastomer (TPE)	Cap (Cover)
Adels-Contact AC 167 RBU/2 6-7	Latch Lock	Screw	2	Black	250 VDC	Board to Cable/Wire	10 A	Socket	IP68 - Dust Tight, Waterproof	Brass					Free Hanging (In-Line)
Adels-Contact AC 167 RST/2 6-7	Latch Lock	Screw	2	Black	250 VDC	Board to Cable/Wire	10 A	Plug	IP68 - Dust Tight, Waterproof	Brass					Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSL Connector 2 Position Plug Board to Cable/Wire Screw
