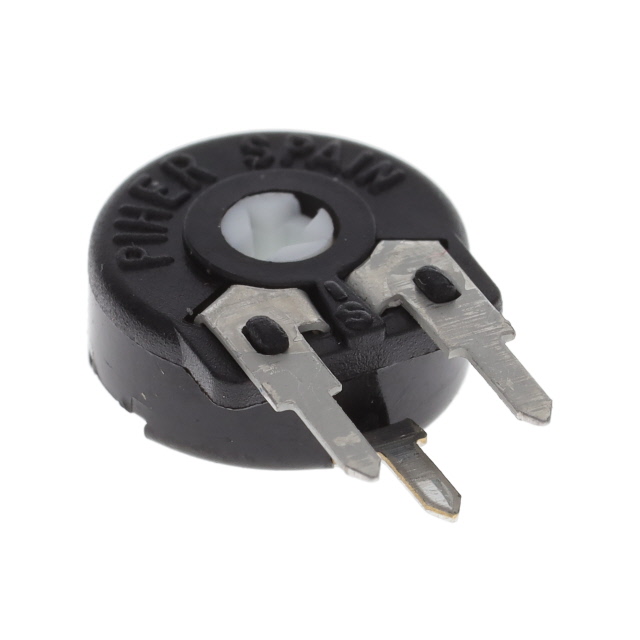

PT10LH01-255A3030-S

Active

Amphenol Piher Sensing Systems

TRIMMER 2.5M OHM 0.15W PC PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT10LH01-255A3030-S

Active

Amphenol Piher Sensing Systems

TRIMMER 2.5M OHM 0.15W PC PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT10LH01-255A3030-S

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	150 mW
Resistance	2.5 MOhms
Resistive Material	Carbon
Size / Dimension	Round
Size / Dimension [diameter]	0.406 in
Size / Dimension [diameter]	10.3 mm
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	30 %

PT10LH01 Series

Part	Temperature Coefficient	Tolerance	Adjustment Type	Mounting Type	Number of Turns	Resistive Material	Power (Watts)	Termination Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Resistance
Amphenol Piher Sensing Systems PT10LH01-504A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PT10LH01-473A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	47 kOhms
Amphenol Piher Sensing Systems PT10LH01-501A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	500 Ohms
Amphenol Piher Sensing Systems PT10LH01-502A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	5 kOhms
Amphenol Piher Sensing Systems PT10LH01-503A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	50 kOhms
Amphenol Piher Sensing Systems PT10LH01-504A2020-PM-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PT10LH01-101A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	100 Ohms
Amphenol Piher Sensing Systems PT10LH01-104A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	100 kOhms
Amphenol Piher Sensing Systems PT10LH01-202A2020-PM-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	2 kOhms
Amphenol Piher Sensing Systems PT10LH01-103A2020-S	300 ppm/°C	20 %	Side Adjustment	Through Hole	1	Carbon	150 mW	PC Pins	0.406 in	10.3 mm	Round	10000 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.68
		25	$ 0.62
		50	$ 0.58
		100	$ 0.54
		250	$ 0.50
		500	$ 0.46
		1000	$ 0.43

Description

General part information

PT10LH01 Series

2.5 MOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
