2744040447
ActiveFair-Rite Products Corp.

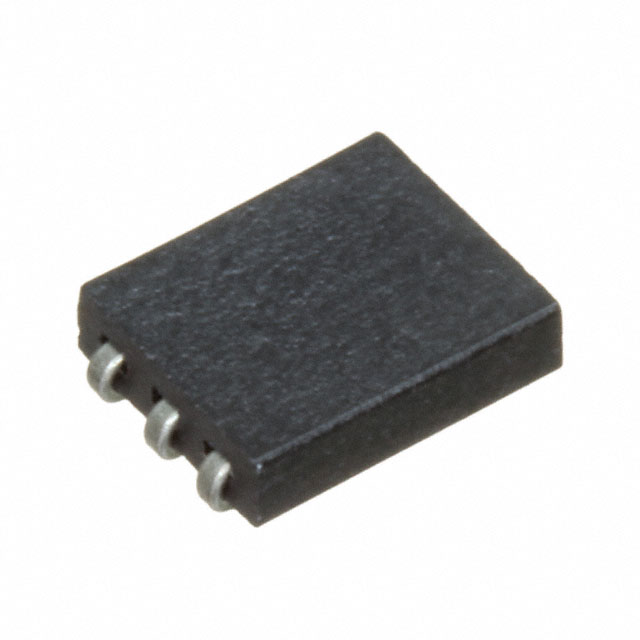

FERRITE BEAD 63 OHM 6SMD 3LN
2744040447
ActiveFair-Rite Products Corp.
FERRITE BEAD 63 OHM 6SMD 3LN
Description
General part information
2744040447
63 Ohms @ 100 MHz 3 Ferrite Bead 6-SMD, J-Lead 1.6mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2744040447 |
|---|---|
| DC Resistance (DCR) (Max) | 1.6 mOhm |
| Height (Max) | 0.077 in |
| Impedance | 63 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension Length | 0.252 in |
| Size / Dimension Width | 0.177 in |
