102589-4

Active

TE Connectivity AMP Connectors

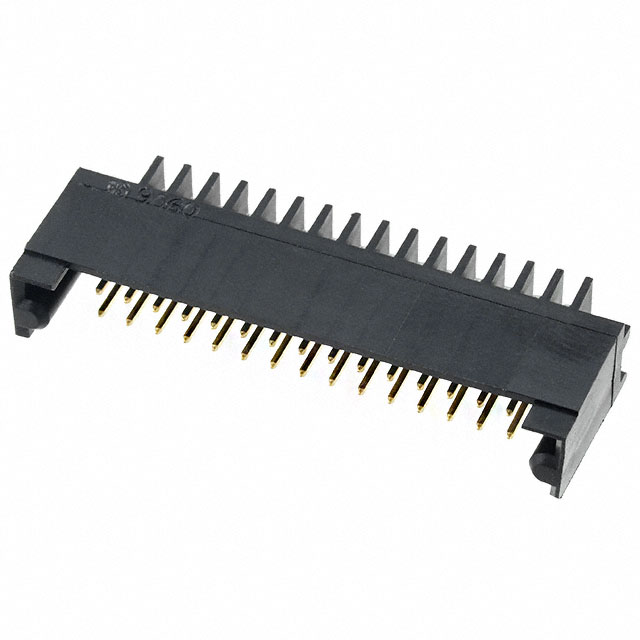

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102589-4

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102589-4	102589 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	8.13 mm	8.13 mm
Contact Length - Mating	0.32 in	0.32 in
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	8.1 mm	8.1 mm
Insulation Height	0.319 in	0.319 in
Insulation Material	Polyester	Polyester
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	30	12 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 3 Wall	Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	480	$ 15.53

102589 Series

CONN HEADER R/A 60POS 2.54MM

Part	Mounting Type	Number of Positions Loaded	Contact Material	Contact Shape	Insulation Material	Contact Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Fastening Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Material Flammability Rating	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding
TE Connectivity AMP Connectors 102589-7	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	60	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin-Lead	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 5-102589-4	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	30	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 102589-6	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	24	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin-Lead	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 102589-4	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	30	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin-Lead	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 6-102589-2	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	20	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 5-102589-6	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	24	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 6-102589-3	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	40	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 5-102589-8	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	12	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall
TE Connectivity AMP Connectors 5-102589-5	Through Hole, Right Angle	All	Phosphor Bronze	Square	Polyester	Male Pin	8.13 mm	0.32 in	3 A	Push-Pull	Header	2.54 mm	0.1 in	50	15 µin	0.38 µm	2.54 µm	100 µin	Solder	2	0.1 in	2.54 mm	Black	Gold	UL94 V-0	250 VAC	8.1 mm	0.319 in	Tin	3.18 mm	0.125 in	Board to Board, Cable	-65 ░C	105 ░C	Shrouded - 3 Wall

Description

General part information

102589 Series

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
