PE44737
ActivePasternack

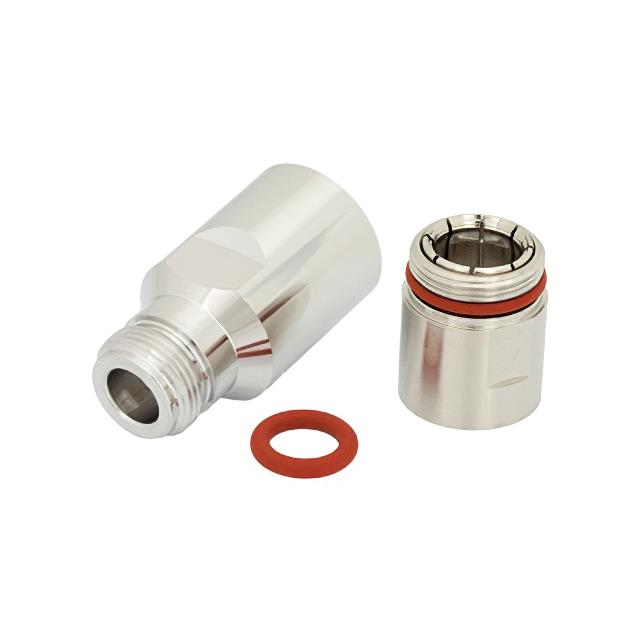

N FEMALE LOW PIM CONNECTOR CLAMP
PE44737
ActivePasternack
N FEMALE LOW PIM CONNECTOR CLAMP
Description
General part information
PE44737
N Type Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44737 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Copper |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 3.6 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Clamp |
| Voltage Rating | 1700 V |
