1-796690-1

Active

TE Connectivity AMP Connectors

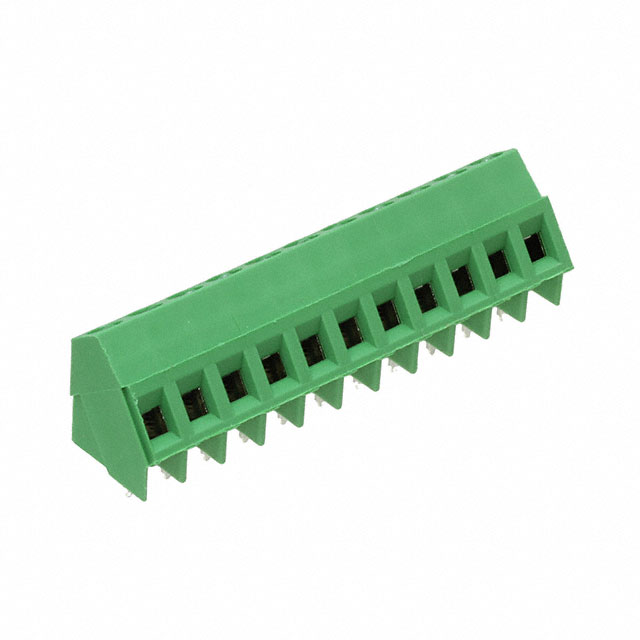

TERM BLOCK 11POS 35DEG 5MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLOCK 11POS 35DEG 5MM PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.197" (5.00mm) Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1-796690-1	796690 Series

Clamp Material - Plating	Brass - Tin Plated	Brass - Tin Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side)
Mating Orientation	35 °	35 °
Mating Orientation	145 °	145 °
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	11	4 - 12
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

TERM BLOCK 4POS 35DEG 5MM PCB

Part	Color	Screw Material - Plating	Current	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating	Contact Material - Plating [custom]	Torque - Screw	Torque - Screw	Wire Termination	Mounting Type	Voltage	Pitch [x]	Pitch [x]	Screw Thread	Number of Levels	Mating Orientation	Mating Orientation	Features	Positions Per Level
TE Connectivity AMP Connectors 796690-4	Green	Brass - Nickel Plated	17.5 A	30 AWG	12 AWG	Brass - Tin Plated	Brass - Tin Plated	0.79 Nm	7 Lb-In	Screw - Rising Cage Clamp	Through Hole	300 V	5 mm	0.197 in	M3	1	35 °	145 °	Interlocking (Side)	4
TE Connectivity AMP Connectors 1-796690-2	Green	Brass - Nickel Plated	17.5 A	30 AWG	12 AWG	Brass - Tin Plated	Brass - Tin Plated	0.79 Nm	7 Lb-In	Screw - Rising Cage Clamp	Through Hole	300 V	5 mm	0.197 in	M3	1	35 °	145 °	Interlocking (Side)	12
TE Connectivity AMP Connectors 1-796690-1	Green	Brass - Nickel Plated	17.5 A	30 AWG	12 AWG	Brass - Tin Plated	Brass - Tin Plated	0.79 Nm	7 Lb-In	Screw - Rising Cage Clamp	Through Hole	300 V	5 mm	0.197 in	M3	1	35 °	145 °	Interlocking (Side)	11
TE Connectivity AMP Connectors 796690-7	Green	Brass - Nickel Plated	17.5 A	30 AWG	12 AWG	Brass - Tin Plated	Brass - Tin Plated	0.79 Nm	7 Lb-In	Screw - Rising Cage Clamp	Through Hole	300 V	5 mm	0.197 in	M3	1	35 °	145 °	Interlocking (Side)	7
