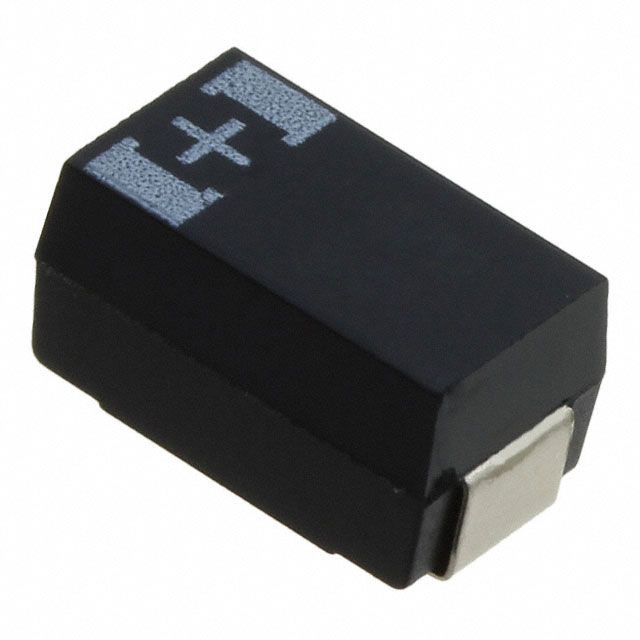

10THB330M

Panasonic Electronic Components

CAP TANT POLY 330UF 10V 2917

Search across all available documentation for this part.

Panasonic Electronic Components

CAP TANT POLY 330UF 10V 2917

Technical Specifications

Parameters and characteristics for this part

Specification	10THB330M

Capacitance	330 µF
ESR (Equivalent Series Resistance)	35 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.154 in
Height - Seated (Max) [Max] [z]	3.9 mm
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	D4
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

CAP TANT POLY 330UF 10V 2917

Part	Manufacturer Size Code	Features	Tolerance	ESR (Equivalent Series Resistance)	Voltage - Rated	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Package / Case	Package / Case
Panasonic Electronic Components 10THB330M	D4	General Purpose	20 %	35 mOhm	10 V	1000 Hrs	0.154 in	3.9 mm	330 µF	-55 °C	125 °C	4.3 mm	0.287 "	7.3 mm	0.169 "	Molded	Surface Mount	7343 Metric	2917

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

330 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 35mOhm @ 100kHz
