82505 877U1000

Active

Belden Inc.

MULTI-PAIR 10COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 10COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	82505 877U1000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.98 mm
Jacket (Insulation) Diameter [diameter]	0.196 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Jacket Color	Number of Conductors	Shield Coverage	Voltage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Shield Type	Shield Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Insulation	Jacket (Insulation) Material	Features
Belden Inc. 82505 8771000	Copper Tinned	Natural	10	100 %	300 V	1000 ft	304.8 m	0.015 in	0.381 mm	Multi-Pair	32 AWG	7	75 ░C	0 °C	24 AWG	Foil	Aluminum	Computer	4.98 mm	0.196 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire
Belden Inc. 82505 877U1000	Copper Tinned	Natural	10	100 %	300 V	1000 ft	304.8 m	0.015 in	0.381 mm	Multi-Pair	32 AWG	7	75 ░C	0 °C	24 AWG	Foil	Aluminum	Computer	4.98 mm	0.196 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.53

General part information

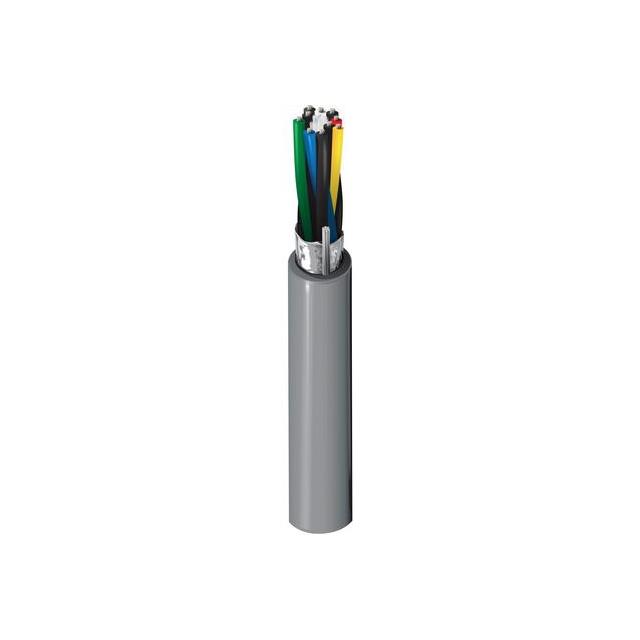

10 (5 Pair Twisted) Conductor Multi-Pair Cable Natural 24 AWG Foil 1000.0' (304.8m)
