CB175-38-QY

Active

Panduit Corp

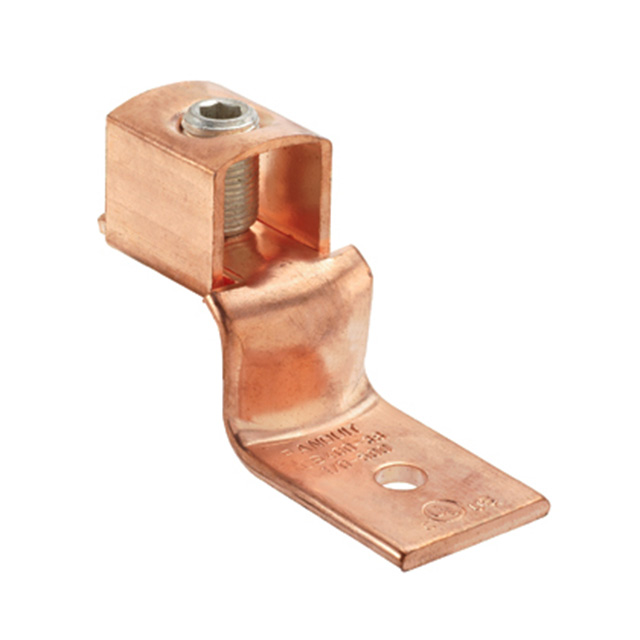

CONN TERM RECT LUG 3/0-4AWG #3/8

Search across all available documentation for this part.

Active

Panduit Corp

CONN TERM RECT LUG 3/0-4AWG #3/8

Technical Specifications

Parameters and characteristics for this part

CONN TERM RECT LUG 3/0-4AWG #3/8

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Features	Contact Material	Mounting Type	Tab Thickness	Tab Thickness	Termination	Terminal Type	Terminal Style	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
Panduit Corp CB175-38-QY	9.91 mm	0.39 in	Non-Insulated	4	3/0	With Screw	Copper	Free Hanging (In-Line)	0.16 in	4.06 mm	Screw	Grounding, Lug	Single Stud Hole	0.75 in	19.05 mm	3/8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminal Connector Rectangular Lug, Grounding 3/0-4 AWG 3/8 Stud
