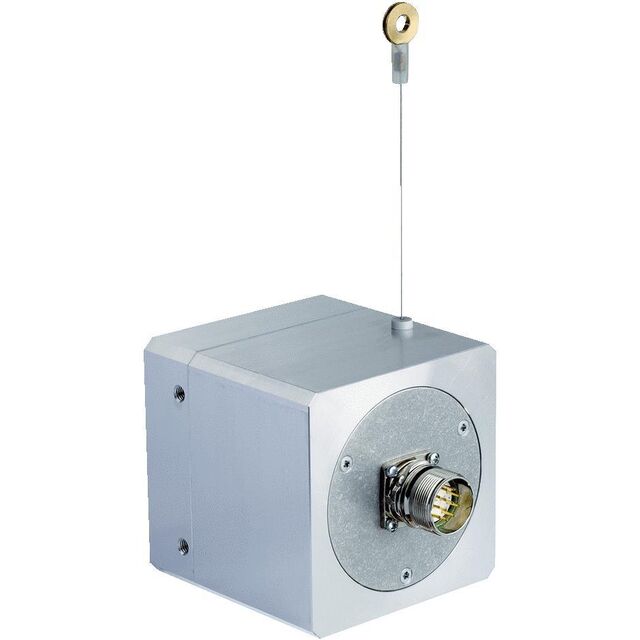

1035242
ActiveSICK, Inc.
WIRE DRAW ENCODER INC
1035242
ActiveSICK, Inc.
WIRE DRAW ENCODER INC
Description
General part information
1035242
Rotary Encoder Incremental 765 Quadrature (Incremental) User Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1035242 |
|---|---|
| Actuator Type | Cable Pull |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 765 |
| Rotational Life (Cycles Min) | 8 M |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
