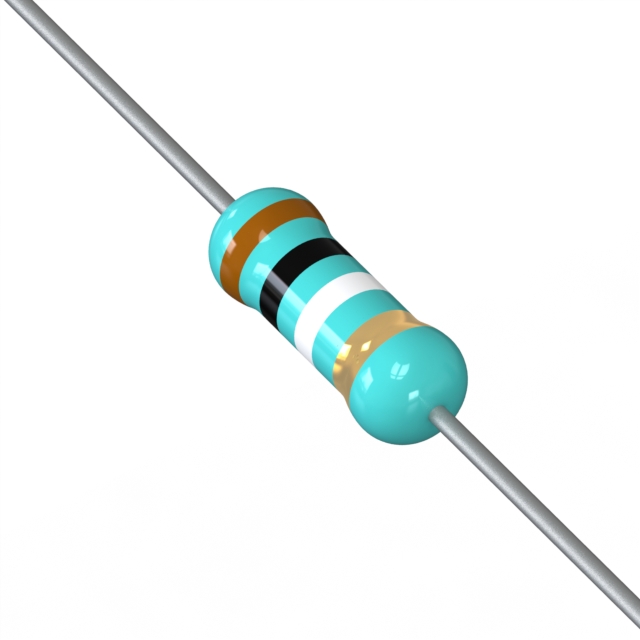

HVA08JA1G00
ActiveStackpole Electronics Inc
RES 1 GOHM 5% 0.8W AXIAL
HVA08JA1G00
ActiveStackpole Electronics Inc
RES 1 GOHM 5% 0.8W AXIAL
Description
General part information
HVA08JA1G00
1 GOhms ±5% 0.8W Through Hole Resistor Axial High Voltage Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVA08JA1G00 |
|---|---|
| Composition | Metal Film |
| Features | High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.8 W |
| Resistance | 1 GOhm |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.335 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
