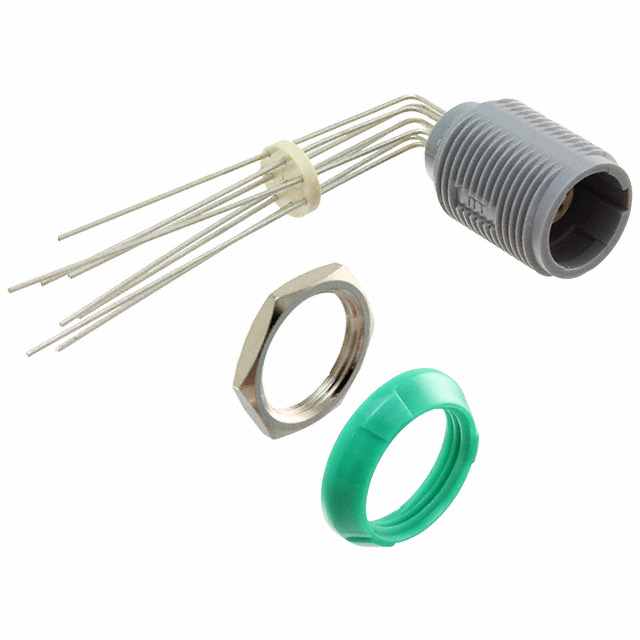

Specification	PLB3G520008

Applications	Medical, Industrial, Testing Equipment & Measurement
Color	Green, Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20 Ąin
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Latch Lock, Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Bulkhead, Front or Rear Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	8
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-50 °C
Orientation Angle	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded
Termination	Solder

PLB3G Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Color	Mounting Type	Mounting Feature	Contact Finish - Mating	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Primary Material	Contact Material	Shielding	Shell Material	Orientation	Number of Positions	Applications	Current Rating	Termination	Orientation Angle
ITT Cannon, LLC PLB3G820E07	Dust Protected	IP50	PEEK Polyetheretherketone	Gray	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	E	7	Industrial Medical Testing Equipment & Measurement	5 A	Solder
ITT Cannon, LLC PLB3G520J02	Dust Protected	IP50	PEEK Polyetheretherketone	Gray Green	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	J	2	Industrial Medical Testing Equipment & Measurement	10 A	Solder
ITT Cannon, LLC PLB3G620C09	Dust Protected	IP50	PEEK Polyetheretherketone	Blue Gray	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	C	9	Industrial Medical Testing Equipment & Measurement	3 A	Solder
ITT Cannon, LLC PLB3G220H09	Dust Protected	IP50	PEEK Polyetheretherketone	Gray Red	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	H	9	Industrial Medical Testing Equipment & Measurement	3 A	Solder
ITT Cannon, LLC PLB3G520C14	Dust Protected	IP50	PEEK Polyetheretherketone	Gray Green	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	C	14	Industrial Medical Testing Equipment & Measurement	2 A	Solder
ITT Cannon, LLC PLB3G520005	Dust Protected	IP50	PEEK Polyetheretherketone	Gray Green	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)		5	Industrial Medical Testing Equipment & Measurement	7 A	Solder	0 °
ITT Cannon, LLC PLB3G620J08	Dust Protected	IP50	PEEK Polyetheretherketone	Blue Gray	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	J	8	Industrial Medical Testing Equipment & Measurement	5 A	Solder
ITT Cannon, LLC PLB3G620J14	Dust Protected	IP50	PEEK Polyetheretherketone	Blue Gray	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	J	14	Industrial Medical Testing Equipment & Measurement	2 A	Solder
ITT Cannon, LLC PLB3G120A05	Dust Protected	IP50	PEEK Polyetheretherketone	Gray White	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	A	5	Industrial Medical Testing Equipment & Measurement	7 A	Solder
ITT Cannon, LLC PLB3G620E07	Dust Protected	IP50	PEEK Polyetheretherketone	Blue Gray	Panel Mount Right Angle Through Hole	Bulkhead Front or Rear Side Nut	Gold	20 Ąin	Latch Lock Push-Pull	Female Sockets Receptacle	-50 °C	150 °C	Plastic	Copper Alloy	Unshielded	Polysulfone (PSU)	E	7	Industrial Medical Testing Equipment & Measurement	5 A	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PLB3G520008 | Datasheet
