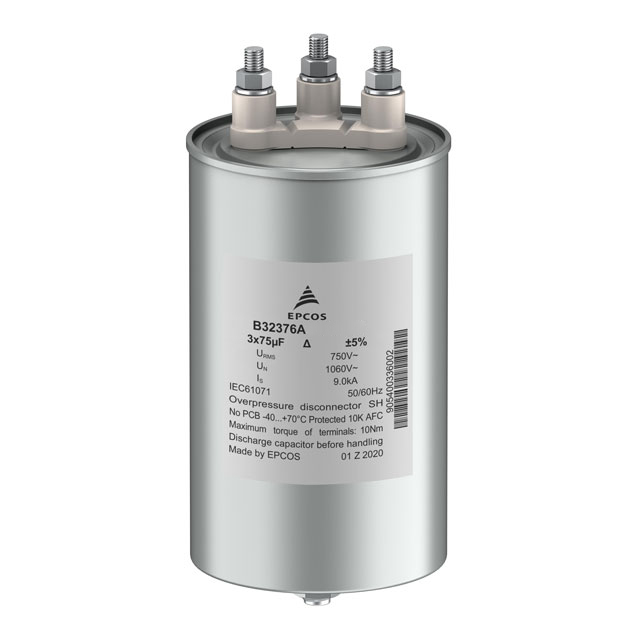

B32376A3307J030
ActiveEPCOS - TDK Electronics
CAP FILM 300UF 5% 460V RADIAL
B32376A3307J030
ActiveEPCOS - TDK Electronics
CAP FILM 300UF 5% 460V RADIAL
Description
General part information
B32376A3307J030
300 µF Film Capacitor 330V 460V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B32376A3307J030 |
|---|---|
| Applications | 3 Phase |
| Capacitance | 300 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 9.154 in |
| Lead Spacing | 1.329 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 5.354 in |
| Termination | Threaded, Male |
| Tolerance | 5 % |
| Voltage Rating - AC | 330 V |
| Voltage Rating - DC | 460 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
